Description

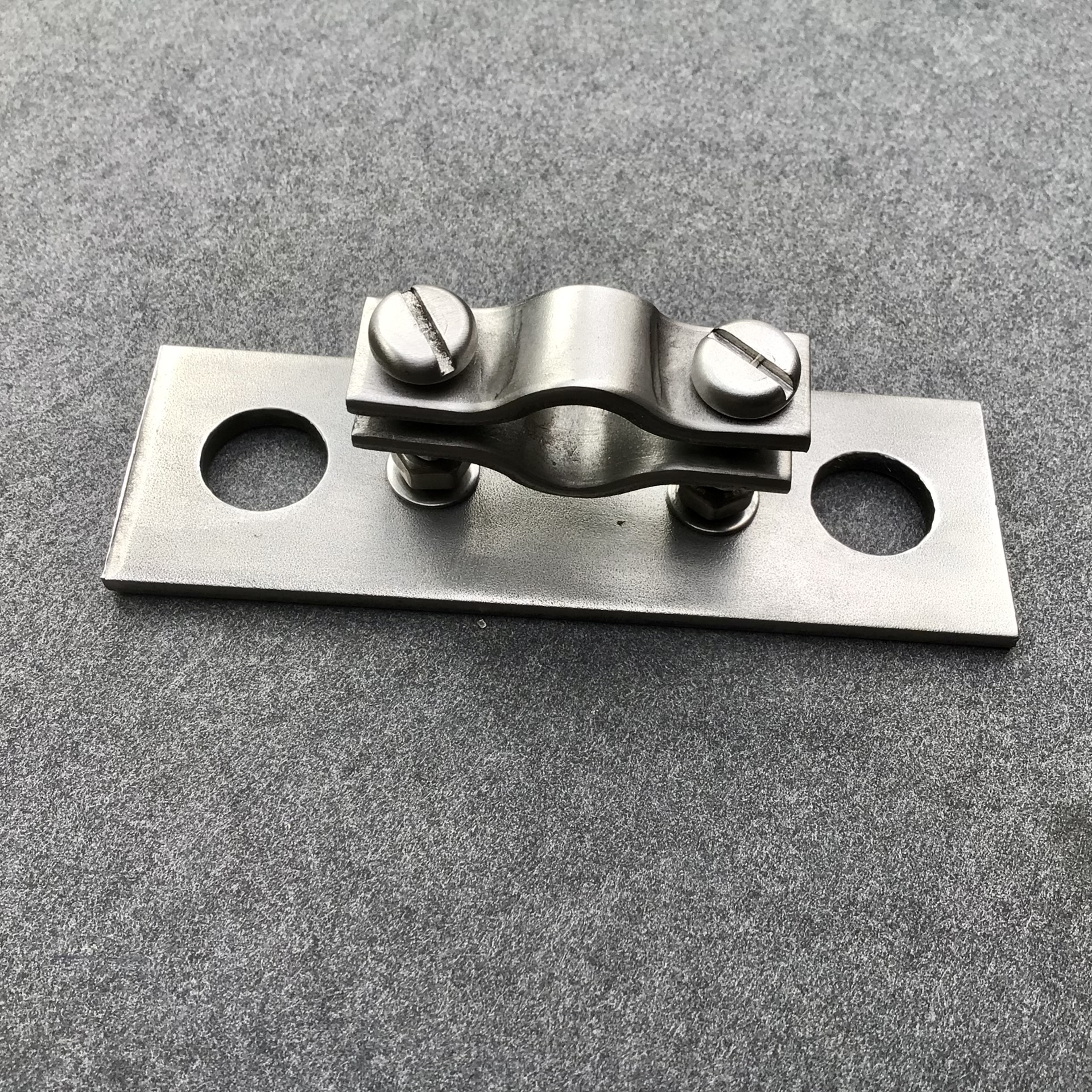

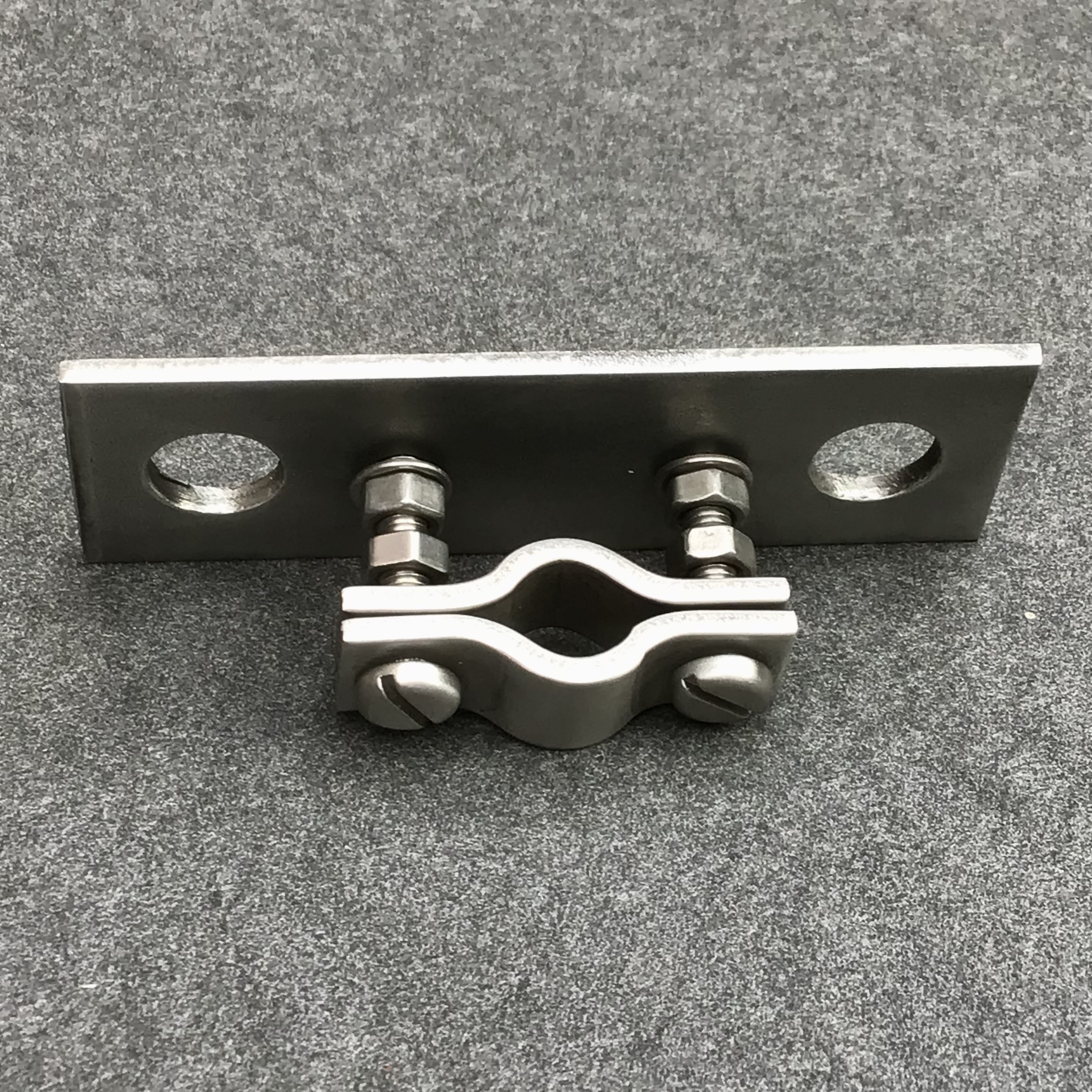

Stainless Steel Clamp For 12mm OD Pipes DK12S

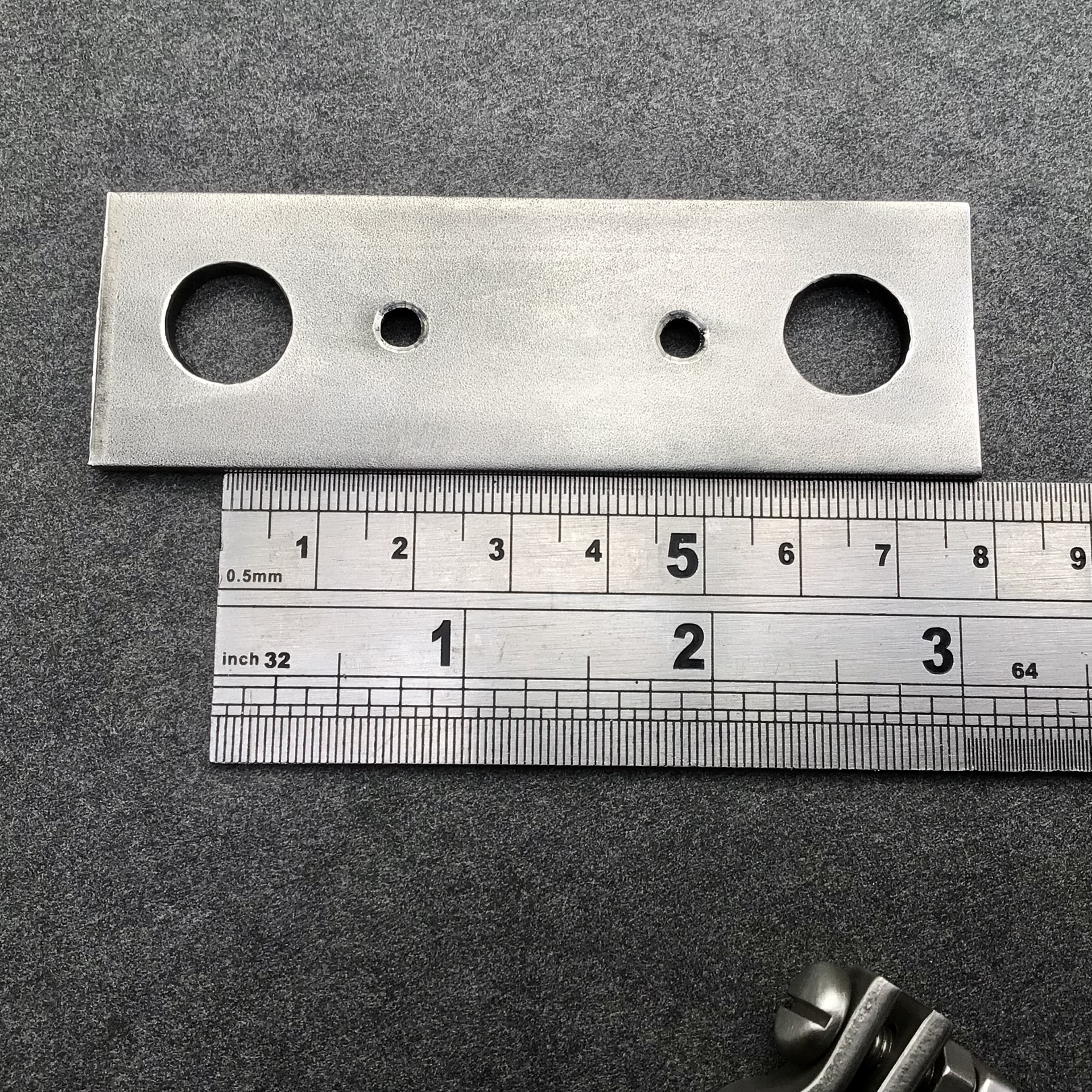

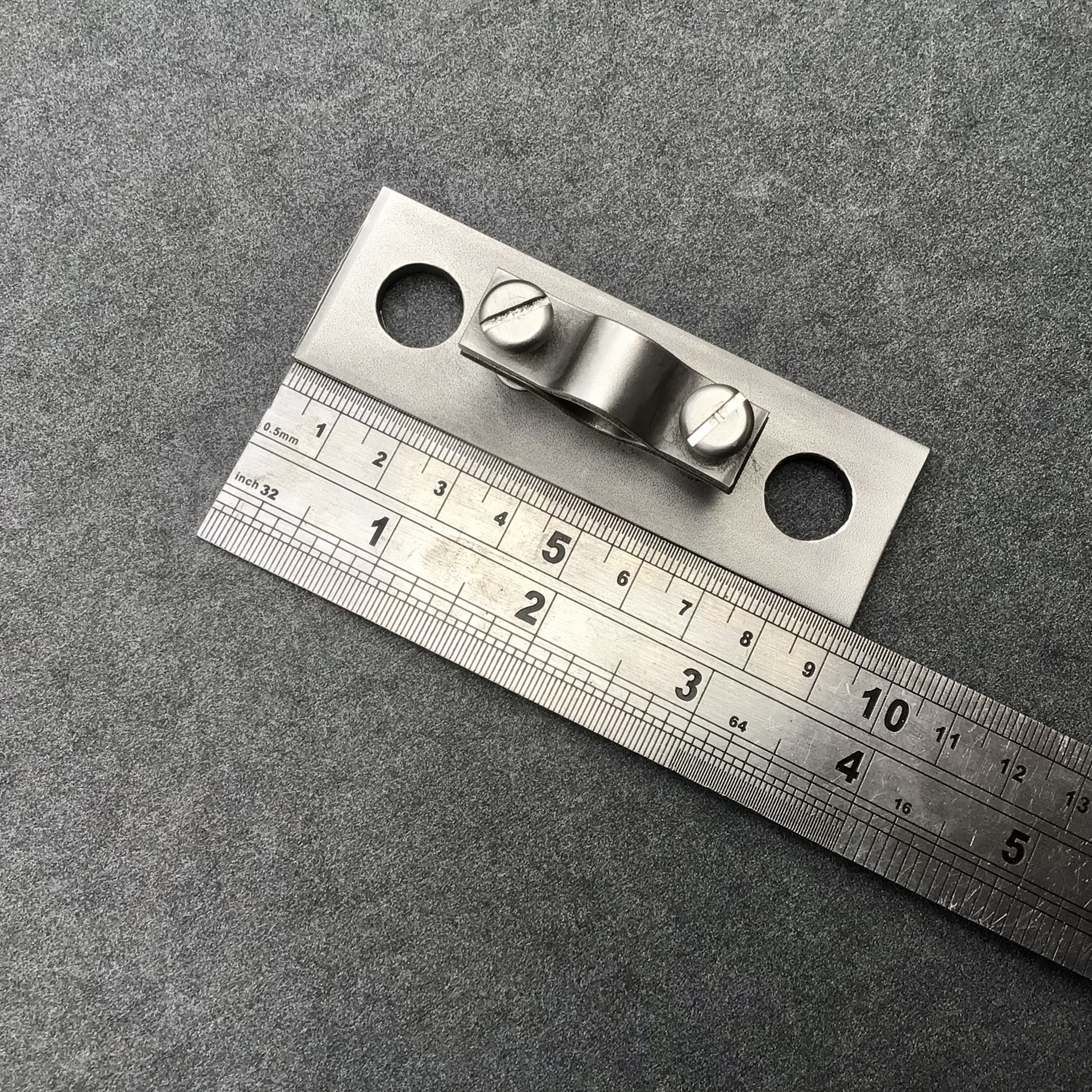

Stainless steel clamp for 12mm outside diameter pipes tubes. The backing plate is 90mm in length with two 12mm fixing holes spaced at 65mm centre to centre. This can be adjusted on request.
The two threaded 5mm holes for the clamp to be secured to the backing plate are approximately 30mm apart.
Stainless Steel Clamp For 12mm OD Pipes DK12S
316L Stainless Steel
Code:DK12S
TOTALLY RUST PROOF
This bracket will secure 12mm OD pipes
Banding Width Of The Clamp 12mm Wide
Banding Width Of The Backing Plate 30mm Wide
Band Thickness 3mm

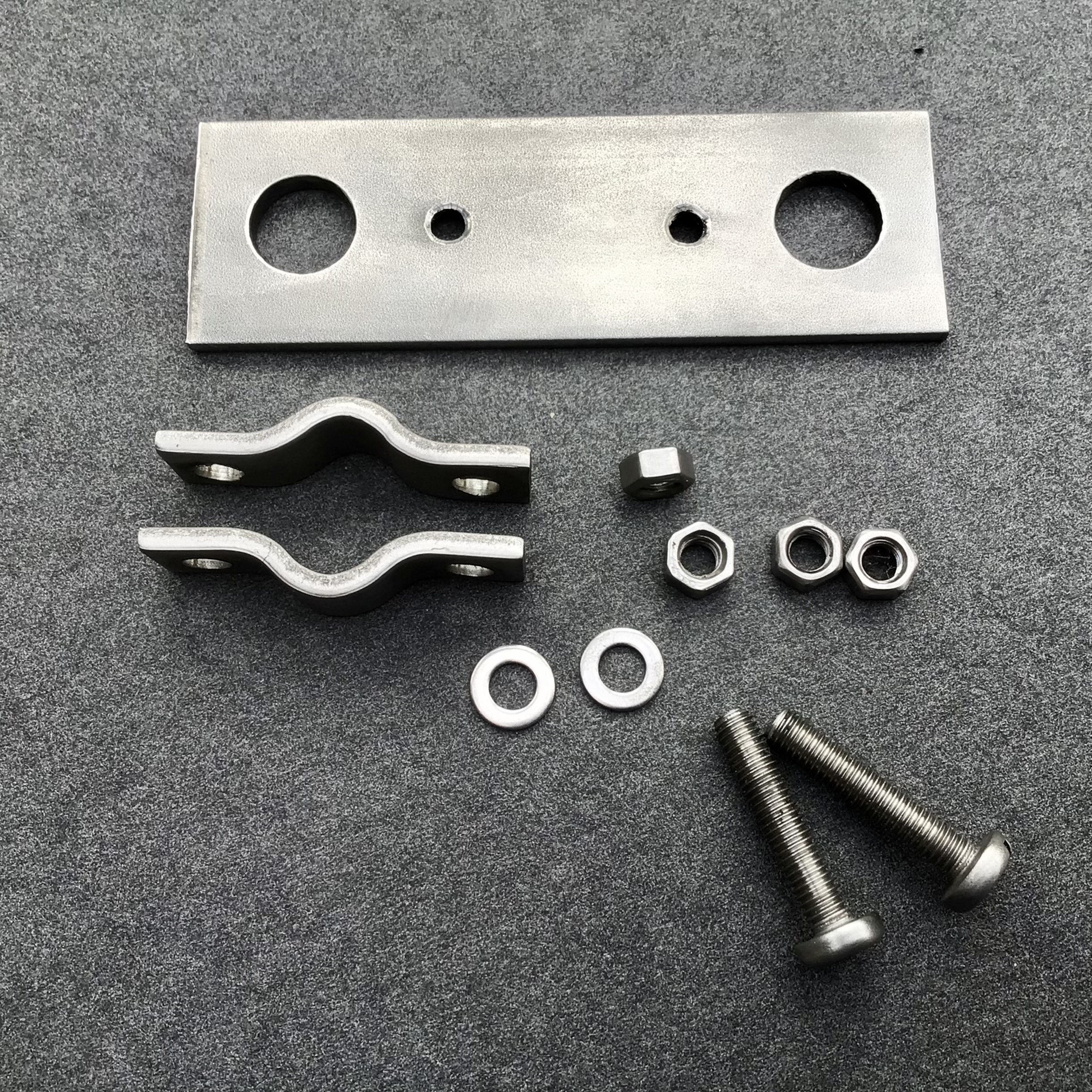

5mm (M5) nuts & bolts
Two 12mm diameter fixing holes spaced at 65mm
Cold Pressed & Non-Welded Product
The use of non-welded pipe clamps are favourable due to their reliability and strength. Welded components can malfunction under certain conditions. NO welding is involved in the manufacturing of any of our products.
The double size combination clamps we manufacture have been cold pressed. This gives the advantage over hot pressed components, as the metal does not lose its strength when cold pressed. These clamps are extremely strong and with the added bonus of being 316L stainless steel (corrosion resistant) makes these pipe clamps the perfect choice for your installation.
Payments & Order Information
When making a purchase from this website simply select the item you want, check the quantity then click the add to cart button. Proceed to the checkout where you will be given several options on how to pay .
Payment: We accept Credit/Debit cards/Direct bank transfer or Paypal. We regret that cheques can only be accepted from approved accounts. Please make sure the delivery address is correct to enable us to process your order smoothly. A receipt of payment will be sent with your goods.
Worldwide Postage
People outside of the UK please contact us for shipping details to your country before you place your order.
Refunds & Returns
If you are not entirely satisfied with your purchase simply send the product/products back and I will issue you a full refund. (buyer pays return postage costs).
Pipe-Clamp Manufacturing BPC Engineering UK
Manufacturers of non-ferrous metal brackets & pipe support clamps
Although we specialise in manufacturing stainless steel aluminium and copper pipe clamps. BPC Engineering offer a subcontract presswork service for small batch production. Small parts press work drilling tapping and assembly. We can work with client press tooling or we can design and build tooling to your specifications to produce the components you require. We have a upto date workshop fully equipped with tooling and 8 – 10 tonne pressure presses. You can view our products in the BPC SHOP.
You can view our full range of pipe clamps and pipe brackets index
