Description
Pipe Mounting Bracket Aluminium 3 Ports 38mm Diameter / 25mm X 3mm
Pipe mounting bracket aluminium 3 ports 38mm diameter / 25mm X 3mm. Ideal for pipes and tubes with a 38mm outside diameter.
Aluminium pipe clamping bracket for safely securing fuel lines, power cables and water pipes. This pipe clamp will space the pipes at 70mm apart centre to centre of the pipes when installed. This will give you 32mm clear space between the pipes. Complete with (M8-8mm) diameter stainless steel bolts, washers and nyloc nuts this bracket is totally rust proof. If you need more information about this bracket please contact us.
Made from aluminium 25mm wide banding. This pipe clamping bracket is extremely strong heavy duty.
Backing Plate

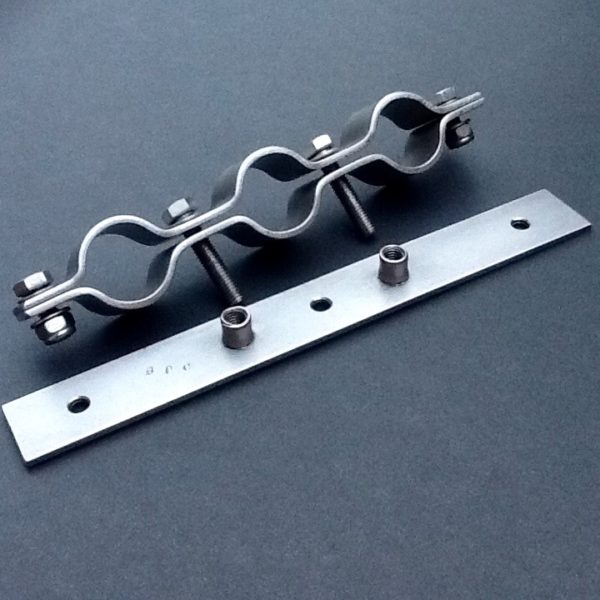

The backing plate is also made from aluminium. It has three pre drilled 6mm holes spaced evenly across the plate. There is two (M8-8mm) rivet nuts set 50mm apart. These will allow you to fix the ports securely.
Pipe mounting bracket aluminium 3 ports 38mm diameter Installation Options
You have several options on how to install this multi pipe clamp bracket. The three pre drilled holes will allow you to secure the backing plate to any solid surface e.g brick wall. Once this is done simply bolt the clamp ports to the plate using the m8 bolts screwed through the front of the ports into the rivet nuts.
For panel installations. The bolts can be screwed through the panel into the threaded backing plate from behind. Then the ports placed over the bolts and secured with the M8 nuts from the front. I hope you understand my installation instructions, if not please contact us. I’ve included several photos to help you. If you require a special size or design multi clamp bracket, let us know and we can work to your specifications.
Measurements
Heavy Duty Aluminium
Pipe Mounting Bracket Aluminium 3 Ports 38mm Diameter / 25mm X 3mm
(25mm Metal Width X 3mm Thickness)
Totally Rust Proof
Port Diameter 38mm
Banding Width 25mm
Banding Thickness 3mm.
(M8-8mm) Fixings (Stainless Steel)
Use the search bar below to find the size you need. We also manufacture these in 316 stainless steel. See link below.
Aluminium Multi Pipe Clamp Bracket. BPC Engineering
More multi port pipe clamps available from our multi pipe clamps category. If you do not find what your looking for please contact us as we may be able to help you find the item. All items are sent free postage & packaging UK.
