Description

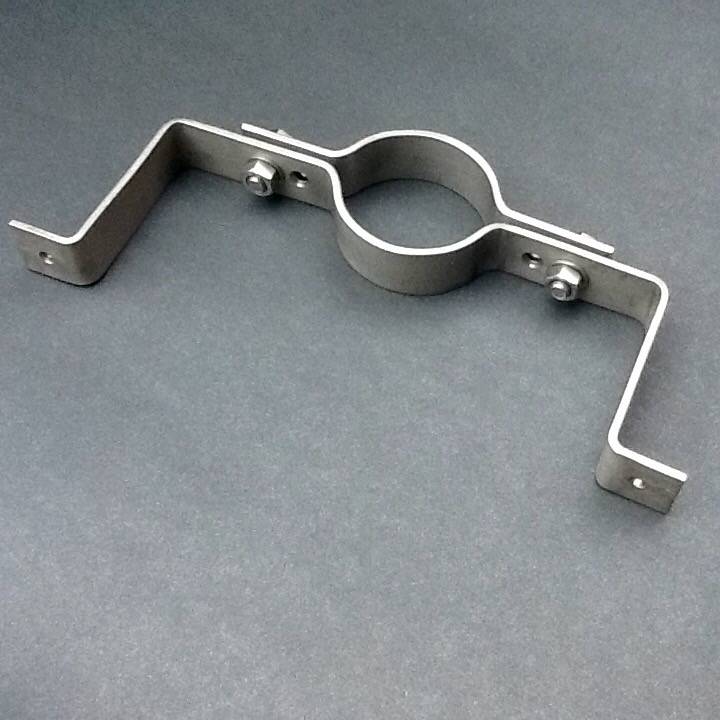

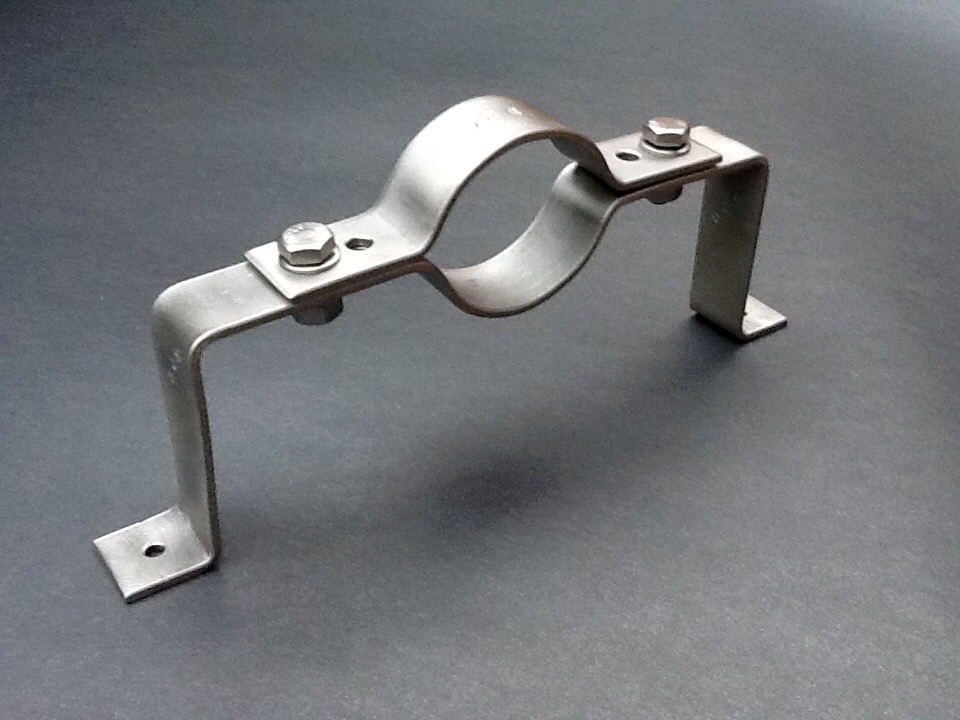

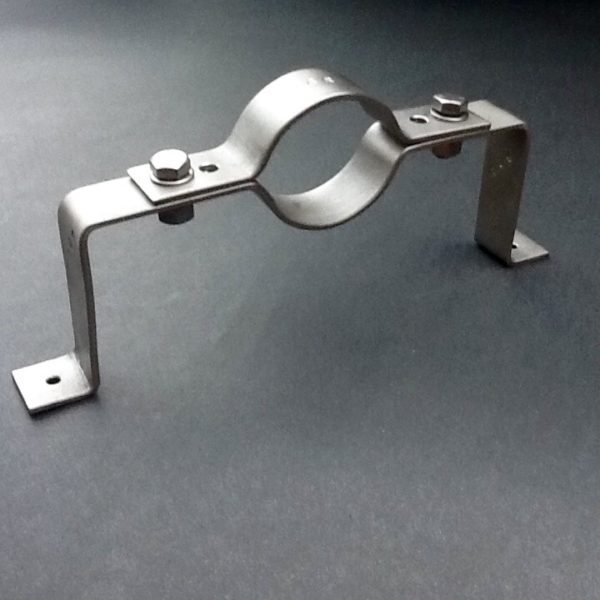

Offset Pipe Clamp 50mm Stainless Steel 316L

Offset pipe clamp 50mm diameter, made from 316L grade stainless steel. 316L grade stainless steel is a non-ferrous metal, Corrosion resistant. (totally rust proof).

316L stainless is ideal for marine installations it can also withstand extreme temperatures. This offset pipe clamp is used for supporting horizontal or vertical pipelines. The clamp can be fixed directly to walls and floors using the two M6 (6mm) diameter pre drilled fixing holes at the feet.

Materials & Quality

BPC Engineering are based in Warwickshire UK. All of our products are made by us using quality materials supplied by local companies. All of our pipe clamps are made from non-ferrous metals. If you would like more information about our products or services please do not hesitate to contact us.

Measurements

This offset pipe clamp is ideal for pipes with an outside diameter of 50mm (2″).

Stainless Steel 316L

Banding Width 25mm

Banding Thickness 3mm

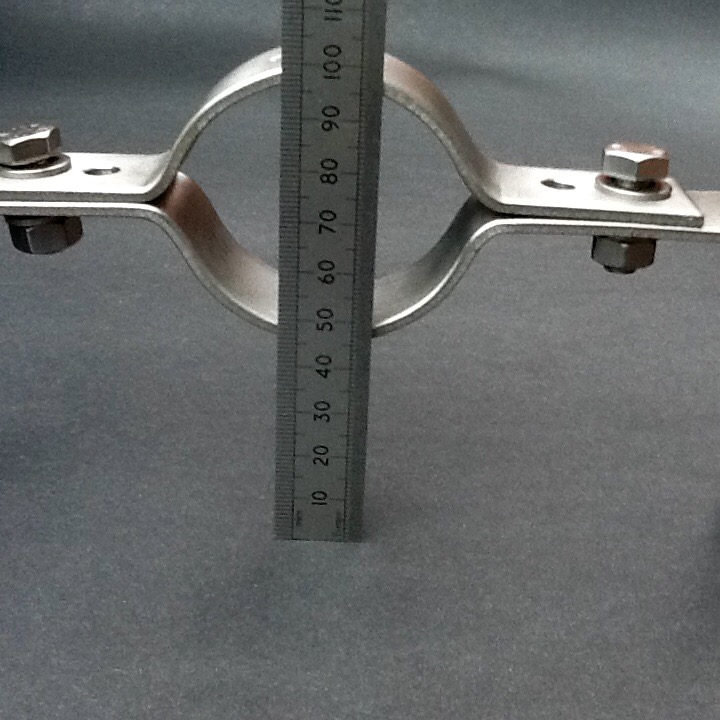

Hight at highest point (Top of the pipe port)  100mm (4″)

Port distance from fixing surface to the base of the port 45mm (1.3/4″)

Clamp total width including surface fixing feet 245mm (9.1/2″)

Clamp width not including surface fixing tabs 190mm (7.1/2″)

The pipe distance from surface once installed would be 50mm (2″)

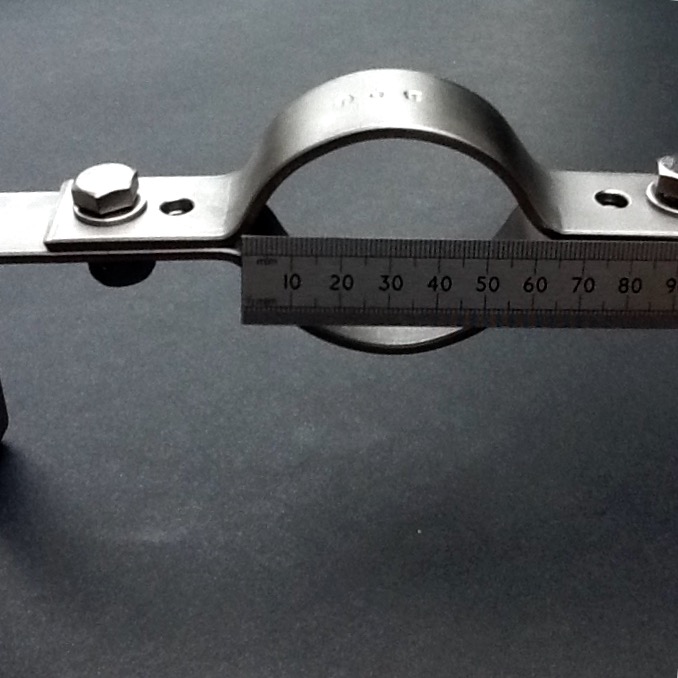

Port Diameter 50mm (2″)

Stainless Steel Fixings

Offset Pipe Clamps

More offset pipe clamps available offset pipe clamps category.



---
