Description

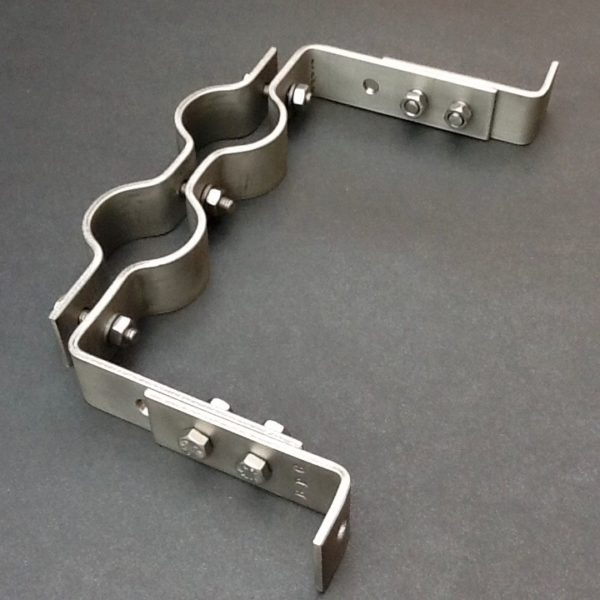

Offset Mechanical Pipe Clamp Bracket 30mm Adjustable Height Stainless Steel 316L
Offset mechanical pipe clamp bracket 30mm adjustable height, made from 316L grade stainless steel. 316L grade stainless steel is a non-ferrous metal, Corrosion resistant. (totally rust proof).
316L stainless is ideal for marine installations it can also withstand extreme temperatures. This offset pipe clamp is used for supporting horizontal or vertical pipelines. The clamp can be fixed directly to walls and floors using the two M6 (6mm) diameter pre drilled fixing holes at the feet.
Materials & Quality
BPC Engineering are based in Warwickshire UK. All of our products are made by us using quality materials supplied by local companies. All of our pipe clamps are made from non-ferrous metals. If you would like more information about our products or services please do not hesitate to contact us.
Measurements
This offset pipe clamp bracket is ideal for pipes with an outside diameter of 30mm
Stainless Steel 316L
Banding Width 25mm
Banding Thickness 3mm
Adjustable Feet
Fully Adjustable Offset Pipe Clamps
The feet can be reversed. You can set them to face outwards or you can set them inwards. Please note longer feet for higher setting are available.
Adjusting Height

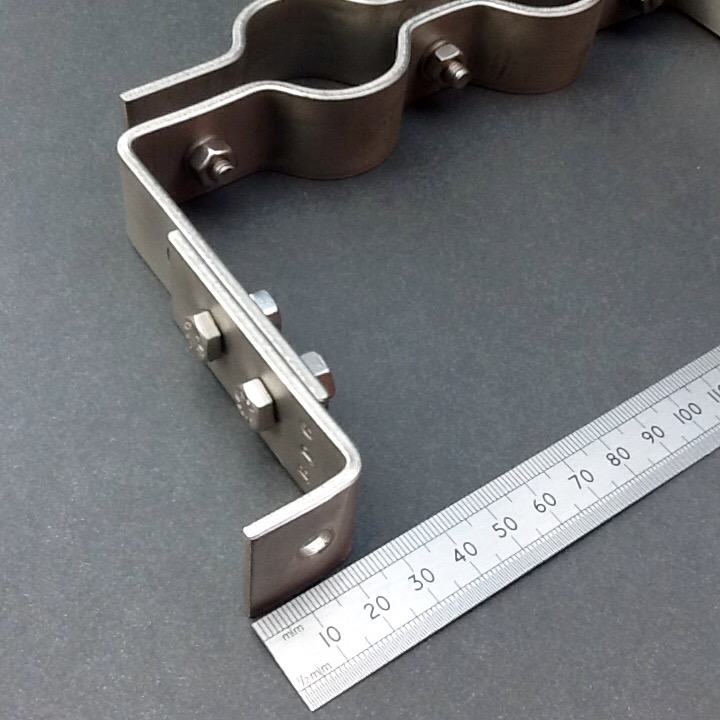

This offset pipe clamping bracket has adjustable feet. The distance of the ports at the lowest point is 70mm (2.3/4″) this can be adjusted to 90mm (3.1/2″)
Clamp total width including surface fixing feet 245mm (9.1/2″)
Clamp width not including surface fixing tabs 190mm (7.1/2″)
Port Diameter 30mm
Stainless Steel Fixings
Offset Mechanical Pipe Clamp 30mm
Offset Pipe Clamps
More offset pipe clamps available offset pipe clamps category.
Payments & Order Information
When making a purchase from this website simply select the item you want, check the quantity then click the add to cart button. Proceed to the checkout where you will be given several options on how to pay .
Payment: We accept Credit/Debit cards/Direct bank transfer or Paypal. We regret that cheques can only be accepted from approved accounts. Please make sure the delivery address is correct to enable us to process your order smoothly. A receipt of payment will be sent with your goods.
Worldwide Postage
People outside of the UK please contact us for shipping details to your country before you place your order.
Refunds & Returns
If you are not entirely satisfied with your purchase simply send the product/products back and I will issue you a full refund. (buyer pays return postage costs).
Pipe-Clamp Manufacturing BPC Engineering UK
Manufacturers of non-ferrous metal brackets & pipe support clamps
Although we specialise in manufacturing stainless steel aluminium and copper pipe clamps. BPC Engineering offer a subcontract presswork service for small batch production. Small parts press work drilling tapping and assembly. We can work with client press tooling or we can design and build tooling to your specifications to produce the components you require. We have a upto date workshop fully equipped with tooling and 8 – 10 tonne pressure presses. You can view our products in the BPC SHOP.
You can view our full range of pipe clamps and pipe brackets index
