Description

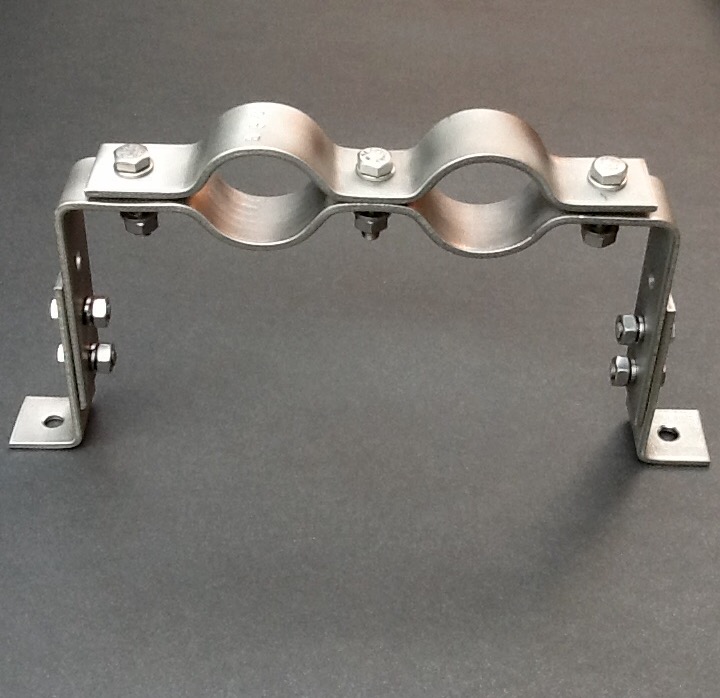

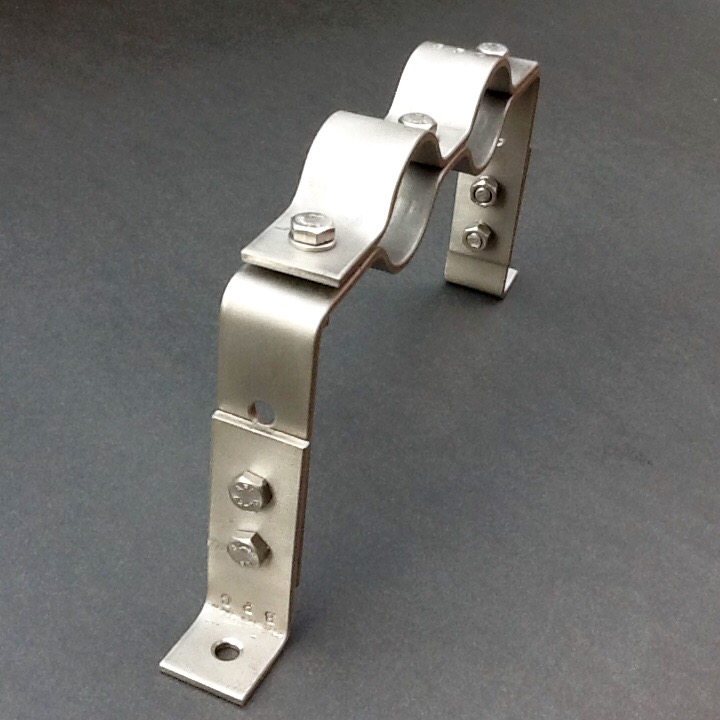

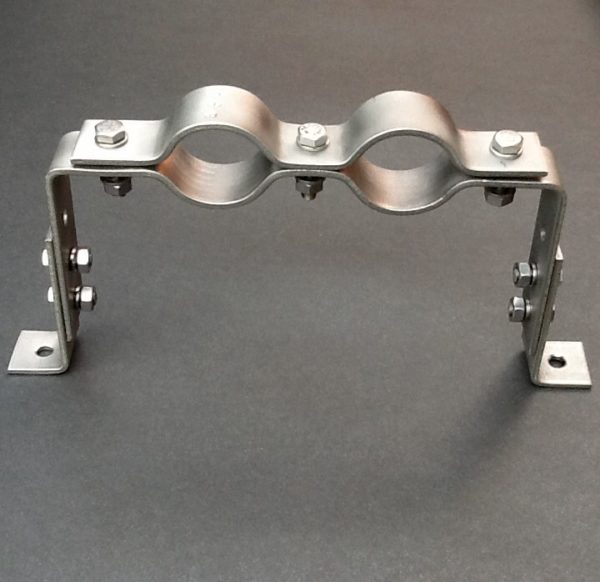

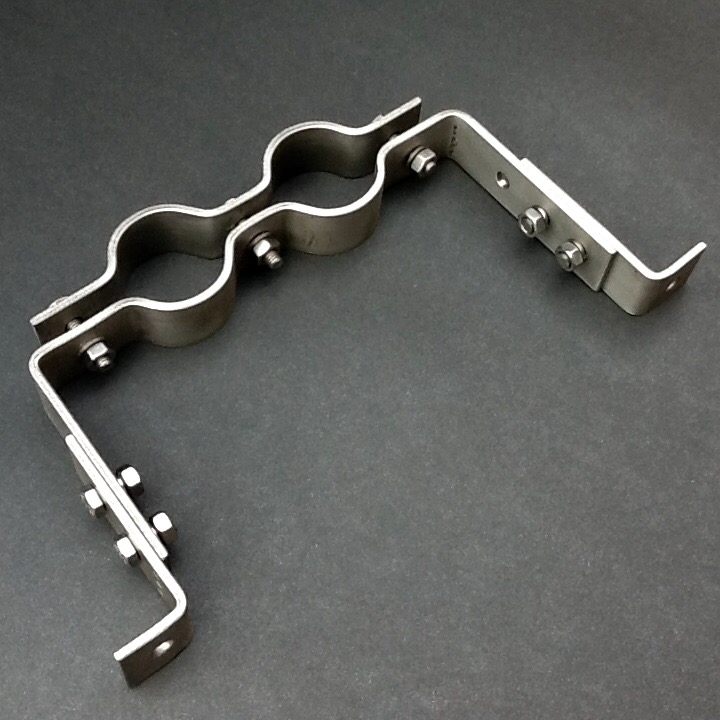

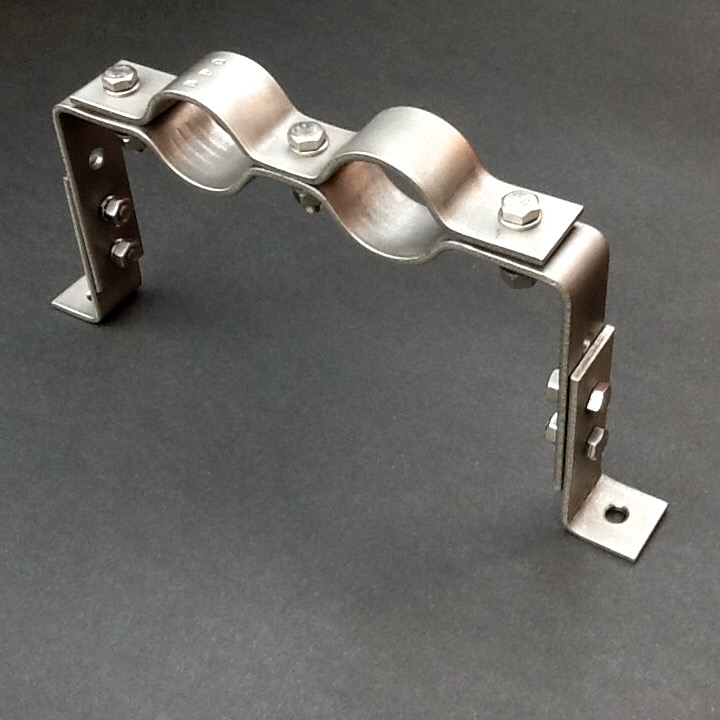

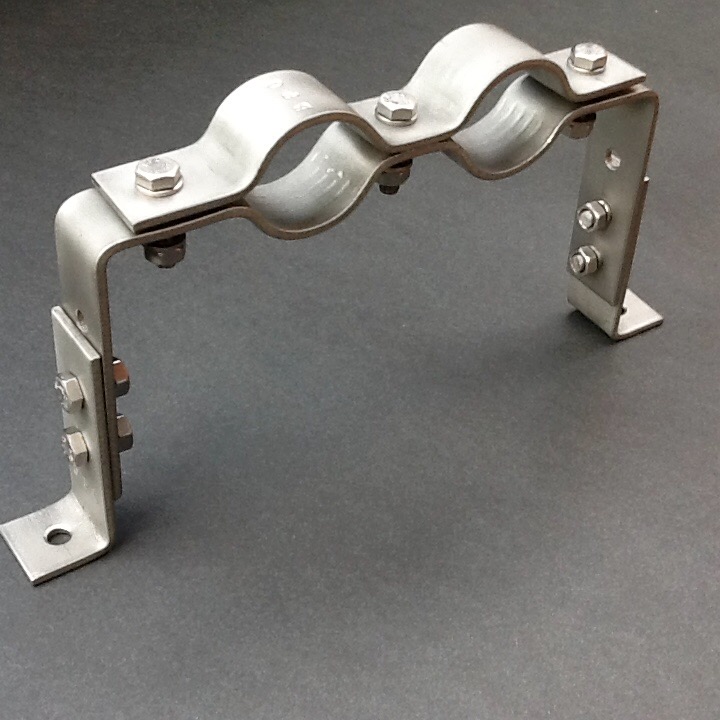

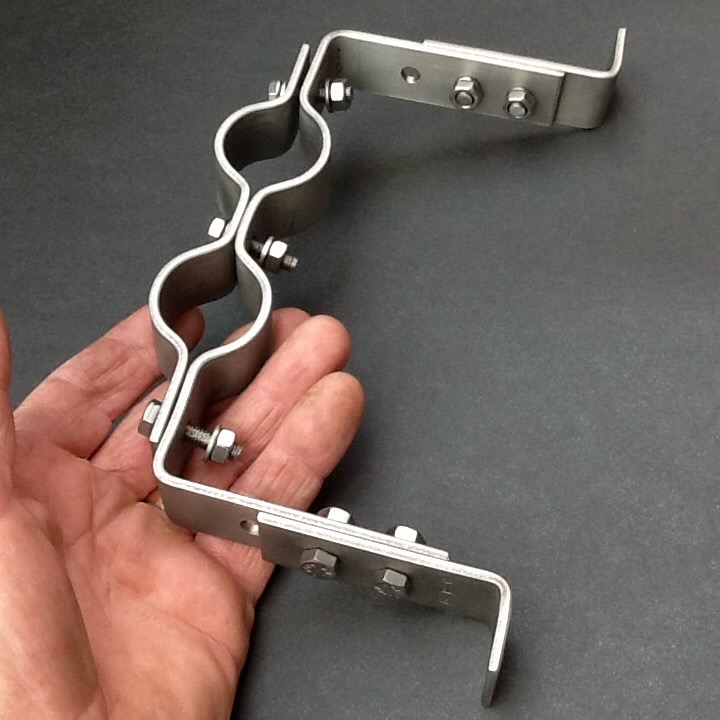

Offset Double Port Clamp Bracket 32mm Adjustable Stainless 316L

Offset double port clamp bracket adjustable 32mm diameter, made from 316L grade stainless steel. 316L grade stainless steel is a non-ferrous metal, Corrosion resistant. (totally rust proof).

316L stainless is ideal for marine installations it can also withstand extreme temperatures. This offset pipe clamp is used for supporting horizontal or vertical pipelines. The clamp can be fixed directly to walls and floors using the two M6 (6mm) diameter pre drilled fixing holes at the feet.

Materials & Quality

BPC Engineering are based in Warwickshire UK. All of our products are made by us using quality materials supplied by local companies. All of our pipe clamps are made from non-ferrous metals. If you would like more information about our products or services please do not hesitate to contact us.

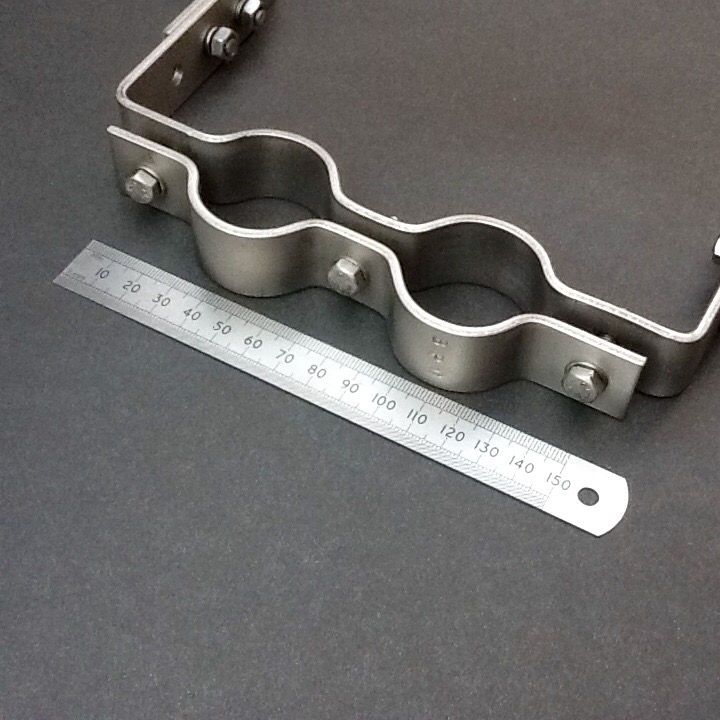

Measurements

This offset double port clamp bracket is ideal for pipes with an outside diameter of 32mm

Stainless Steel 316L

Banding Width 25mm

Banding Thickness 3mm

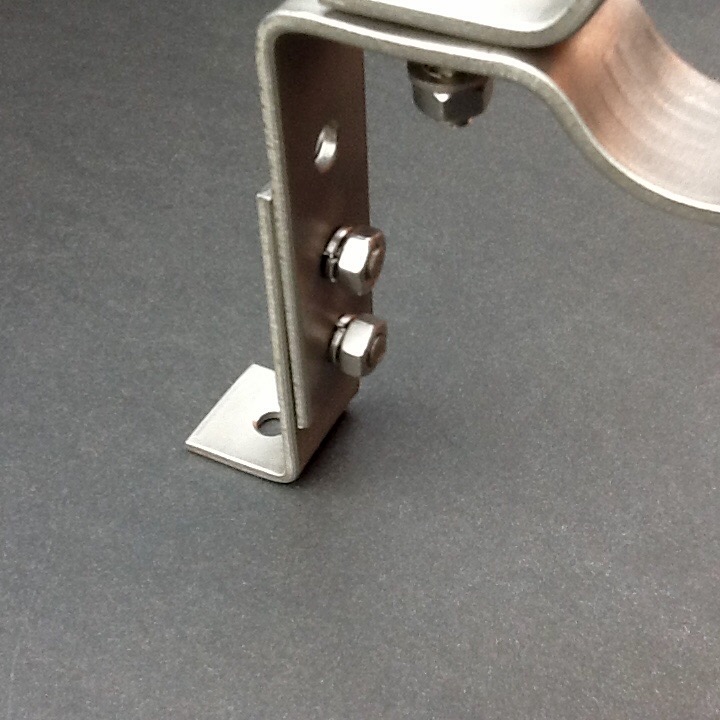

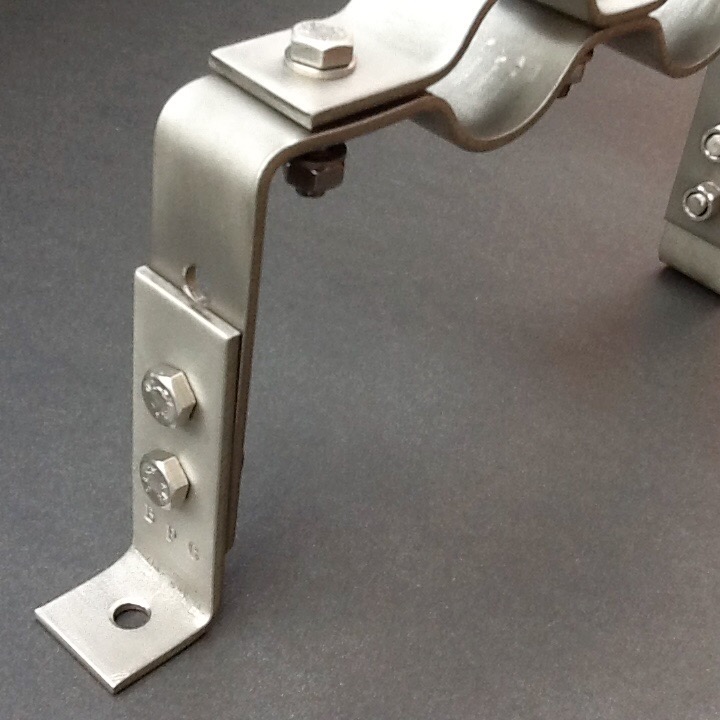

Reversable Adjusting Feet

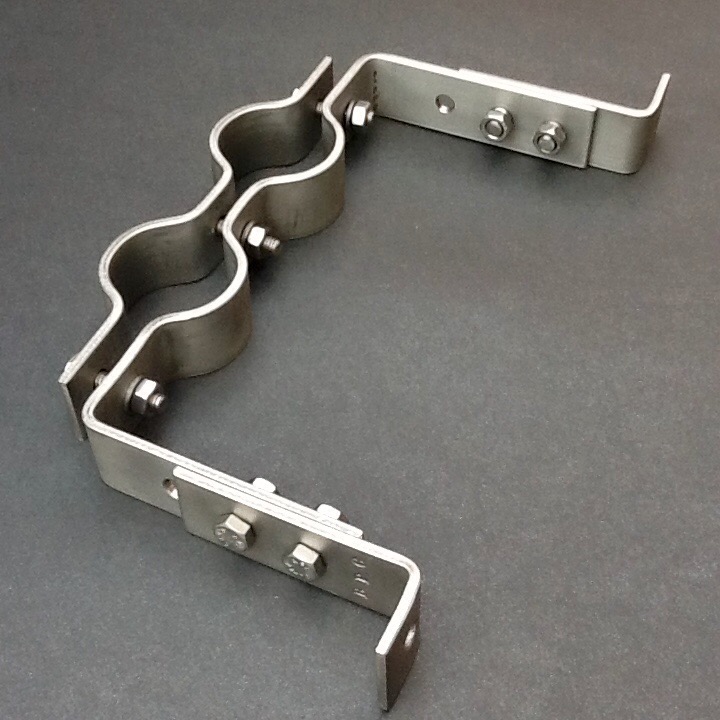

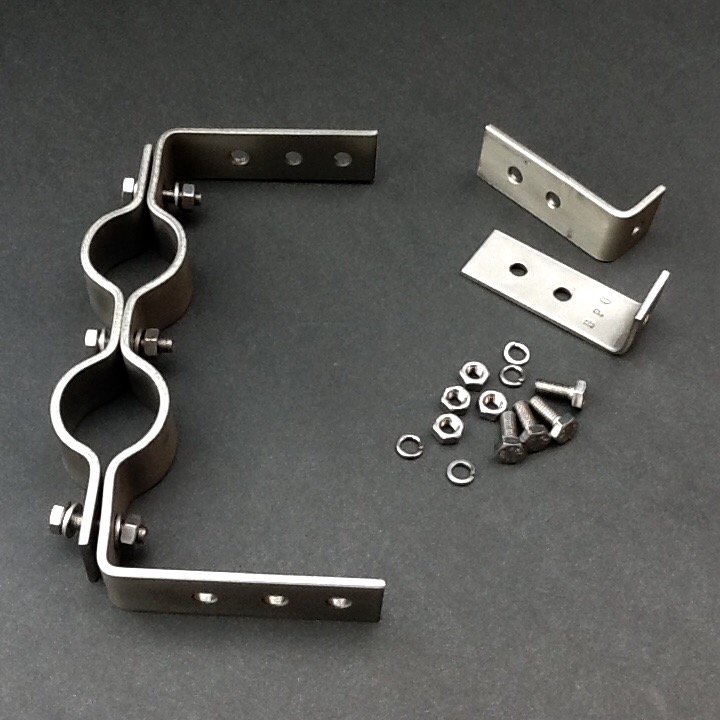

The feet can be reversed. You can set them to face outwards or you can set them inwards. Please note longer feet for higher setting are available.

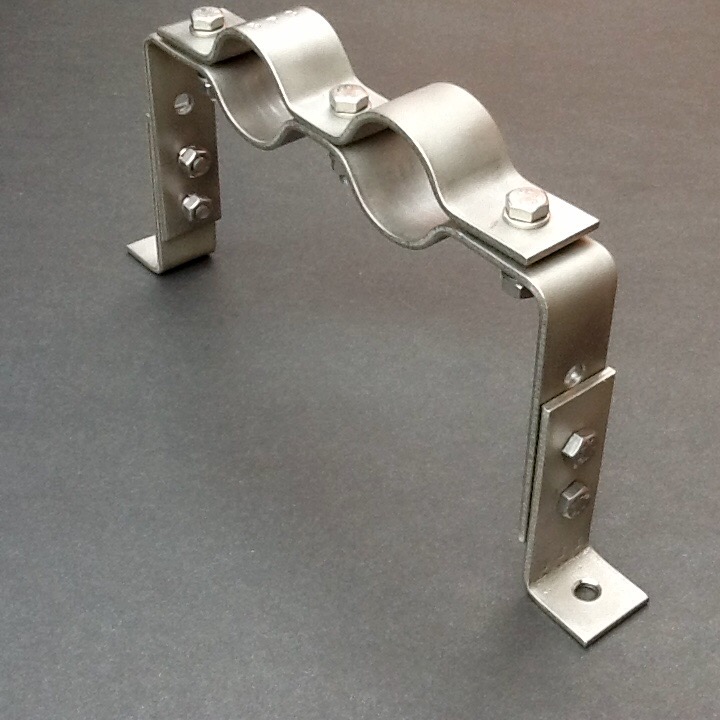

Adjusting Height

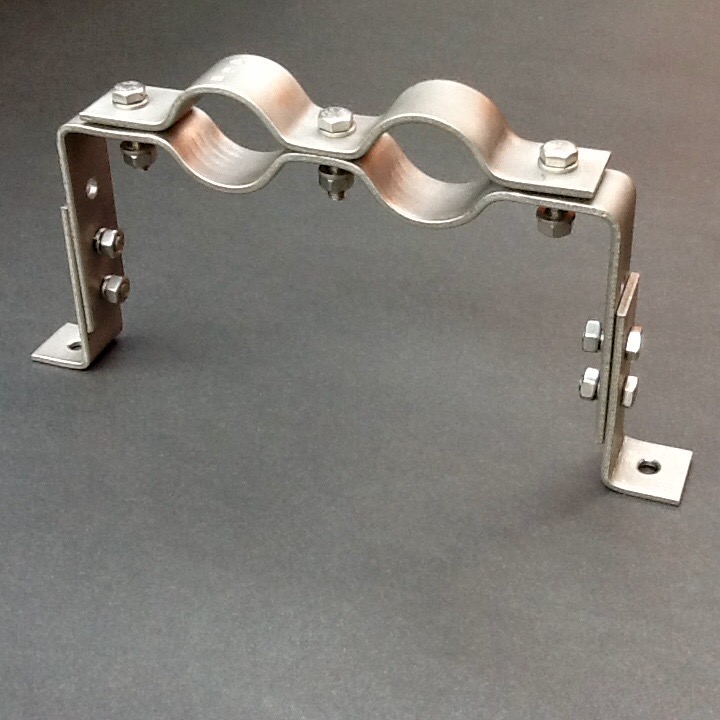

This offset pipe clamping bracket has adjustable feet. The distance of the ports at the lowest point is 70mm (2.3/4″) this can be adjusted to 90mm (3.1/2″)

Clamp total width including surface fixing feet 245mm (9.1/2″)

Clamp width not including surface fixing tabs 190mm (7.1/2″)

Port Diameter 32mm

Stainless Steel Fixings

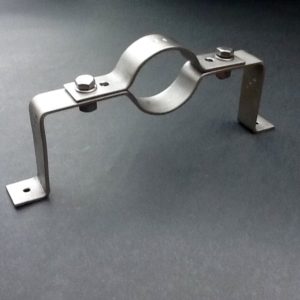

Offset Pipe Clamps

More offset pipe clamps available offset pipe clamps category.



---
