Description
Exposed Shower Pipes Bracket 155mm Spacing Solid Brass

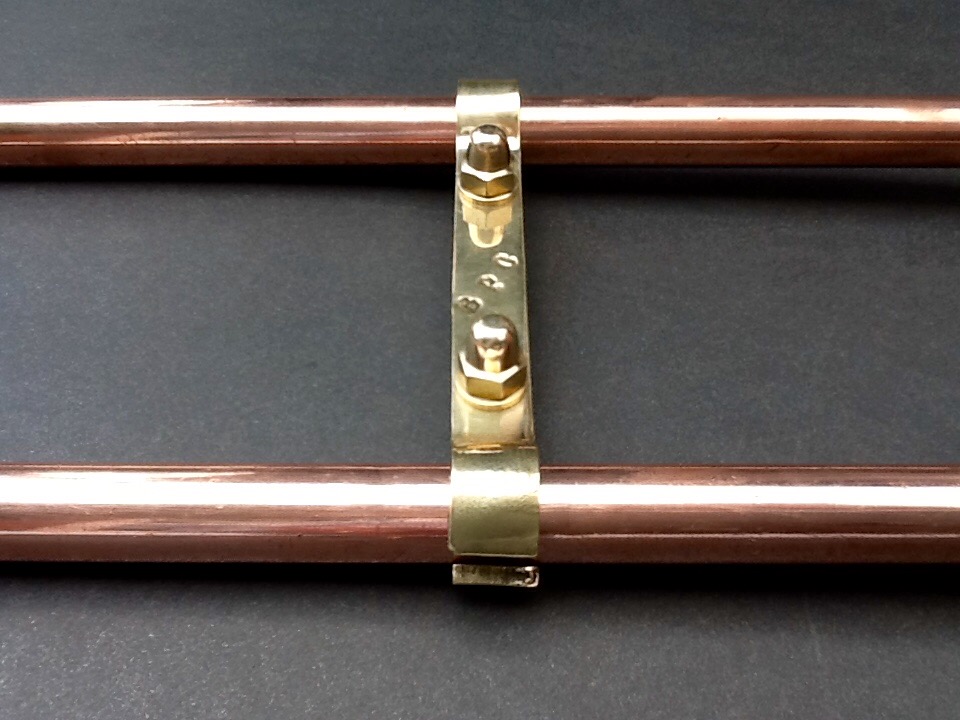

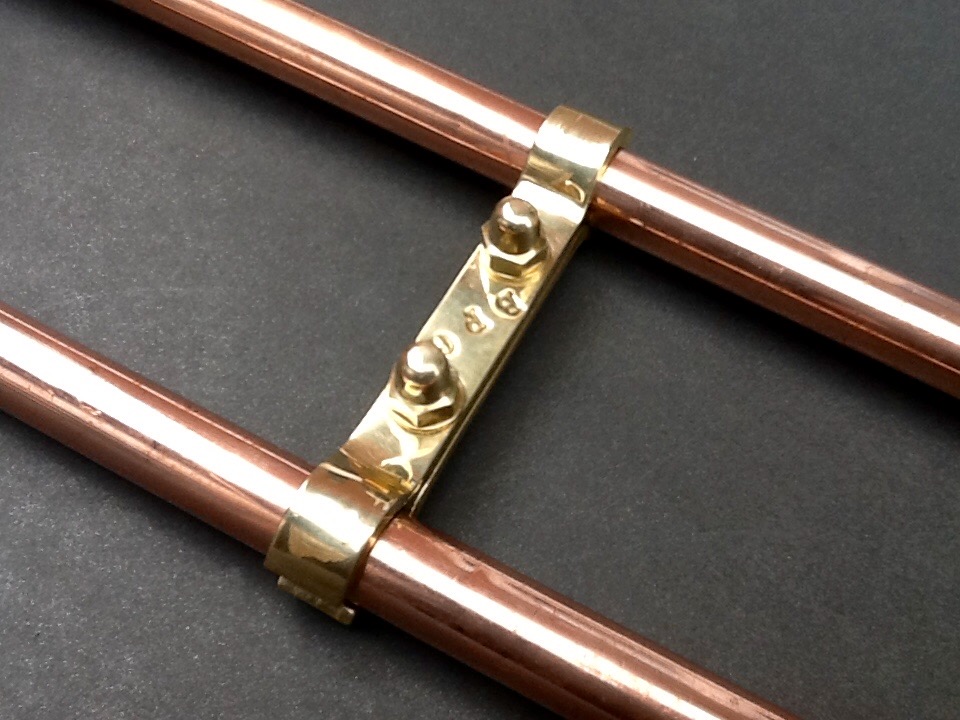

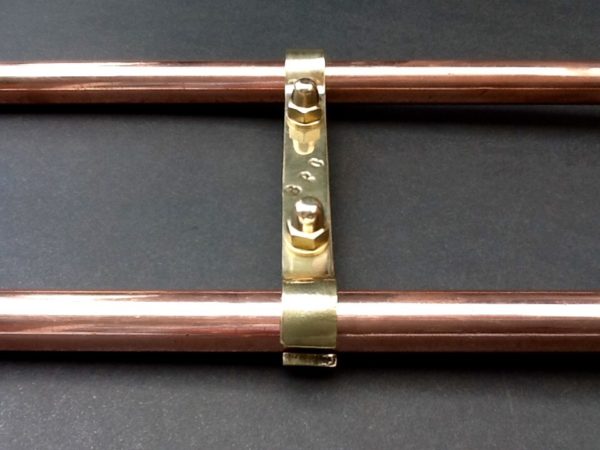

Exposed shower pipes bracket for the installation of shower pipes and mixer tap pipes. This beautifully handmade Victorian style pipe mounting wall bracket will add that finishing touch to your new shower. The pipes once installed will be set at 155mm apart centre to centre of the pipes.
Pipe bracket Qualities

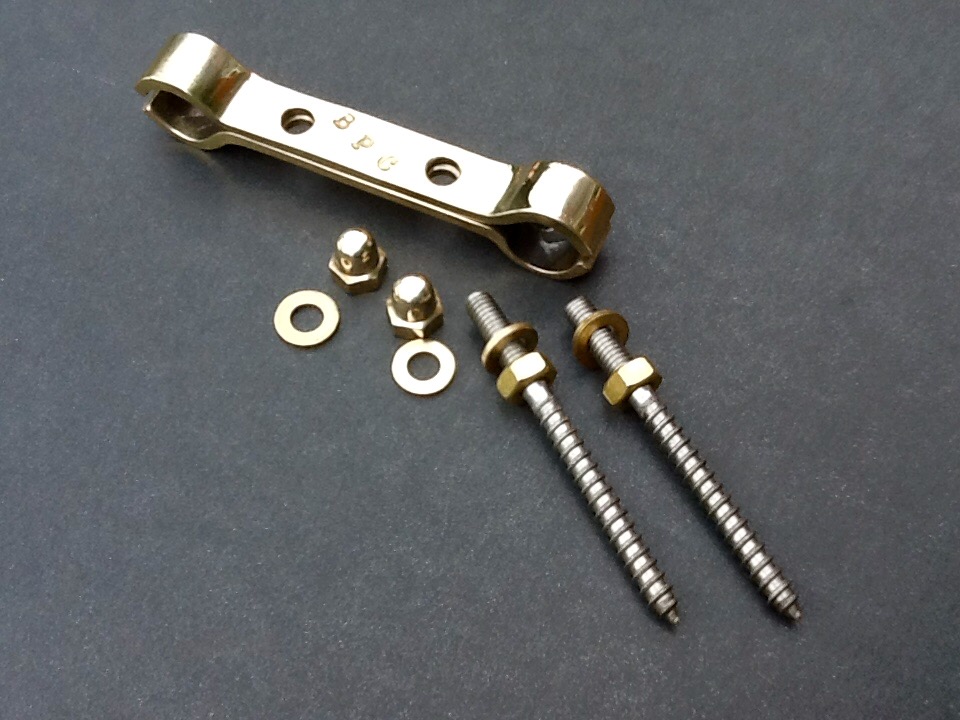

This bracket is based on Victorian design. Made from solid brass 1/8″ thick . The width of the banding is 1/2″ with dome head nuts and brass washers. The actual wall fixings are made from 316L grade stainless steel (Corrosion resistant). The distance of this bracket from the wall can be adjusted using the two locking nuts behind the clamp.

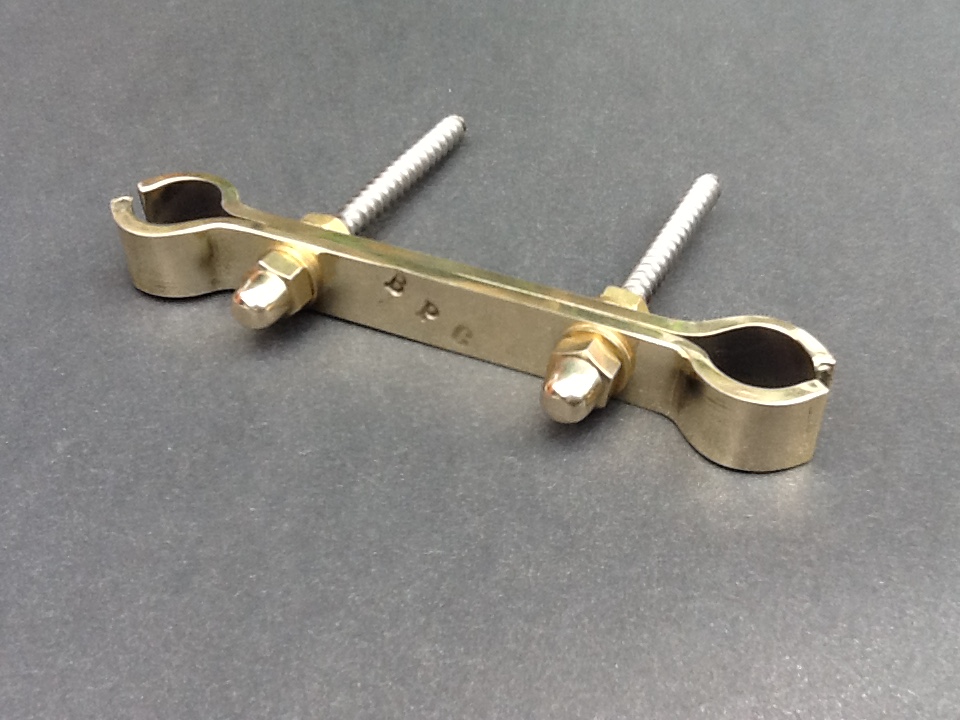

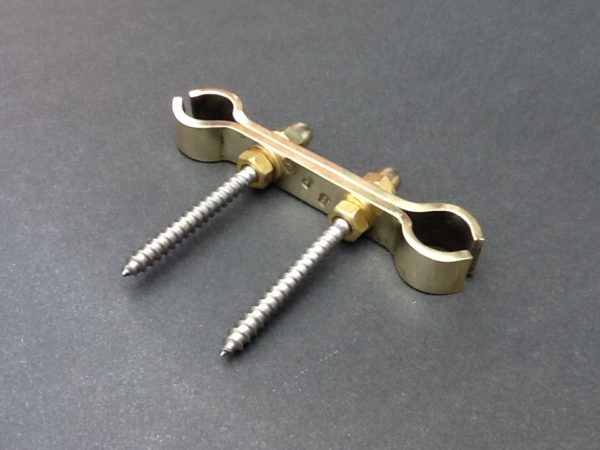

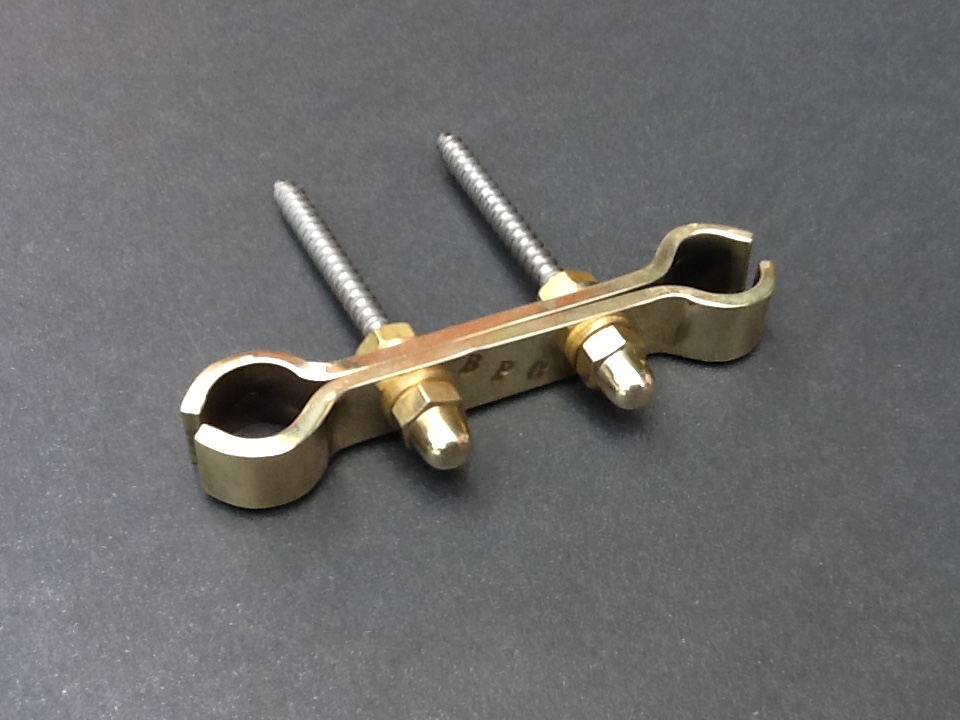

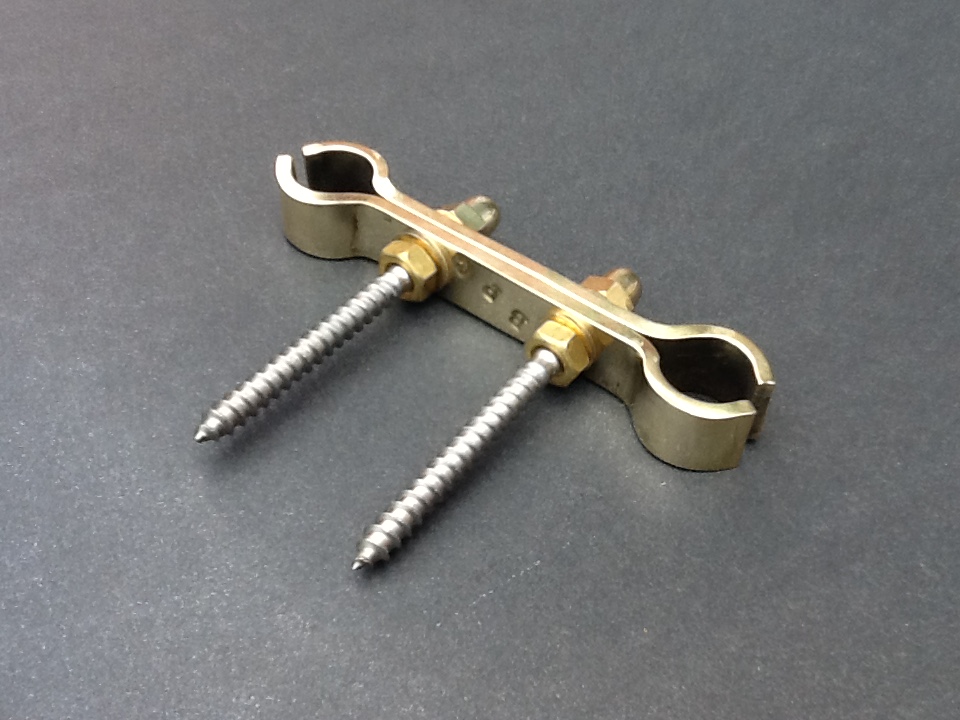

Exposed Shower Pipes Bracket
Handmade
The bracket has been handmade here in Warwickshire England. The brass is heated to a cherry red colour before forming. The bracket is then pressed using our oldest hand press, a Taylor & Challen 1908 screw press, more about that later. The tooling used is the original press tooling used for gas and water pipe fittings. The bracket is then linished and finished off on the polishing mop.
Our Old Press
The press was in service at the Birmingham mint for many years. Made by Taylor & Chellen in 1908. The press is still producing quality metalwork products to this day. No modern machinery can recreate the finish of these brackets.

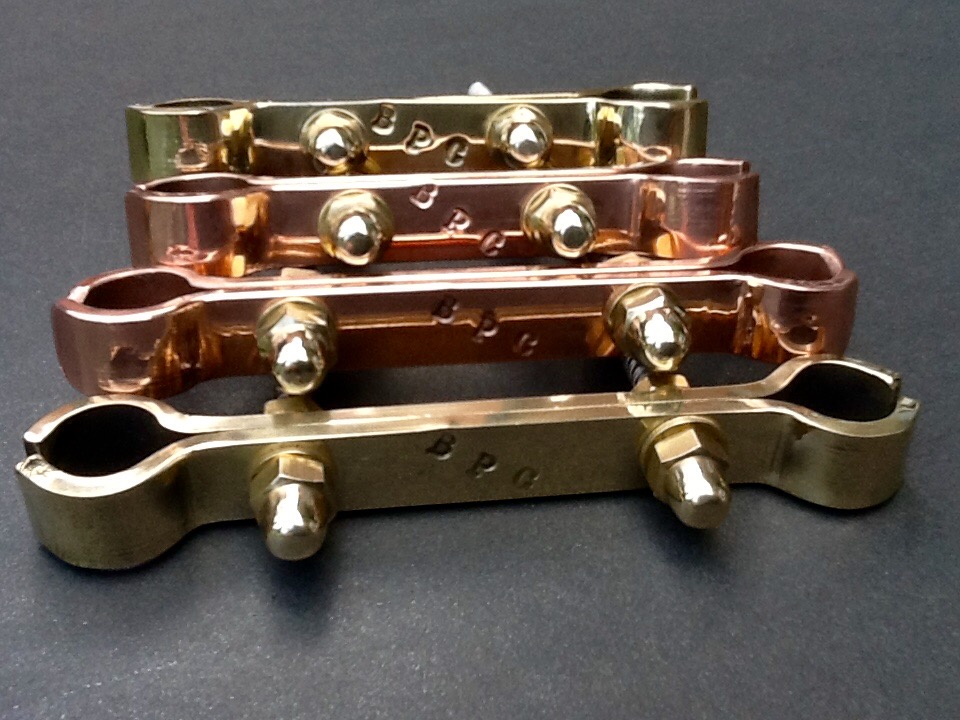

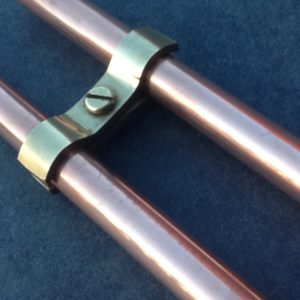

Exposed Shower Pipes Brackets copper and brass
Bespoke Wall Brackets
BPC Engineering offer a custom made service to those that need a special sized pipe clamping bracket. We can adjust the distance between the pipes if needed and the diameter size. We can make brackets with two different sized ports in one clamp. If you need more information about our bespoke service please contact us.
Measurements
Exposed Shower Pipes Bracket 155mm Spacing Solid Brass. More shower pipe brackets.
155mm pipe spacing
1/2″ (12mm) wide brass banding
1/8″ (3mm) thick
M6 (6mm) diameter threaded wall screw with machine thread
Brass nuts & washers
Suitable for 15mm diameter water pipes
You can view our complete range of pipe clamping brackets index.
