Description

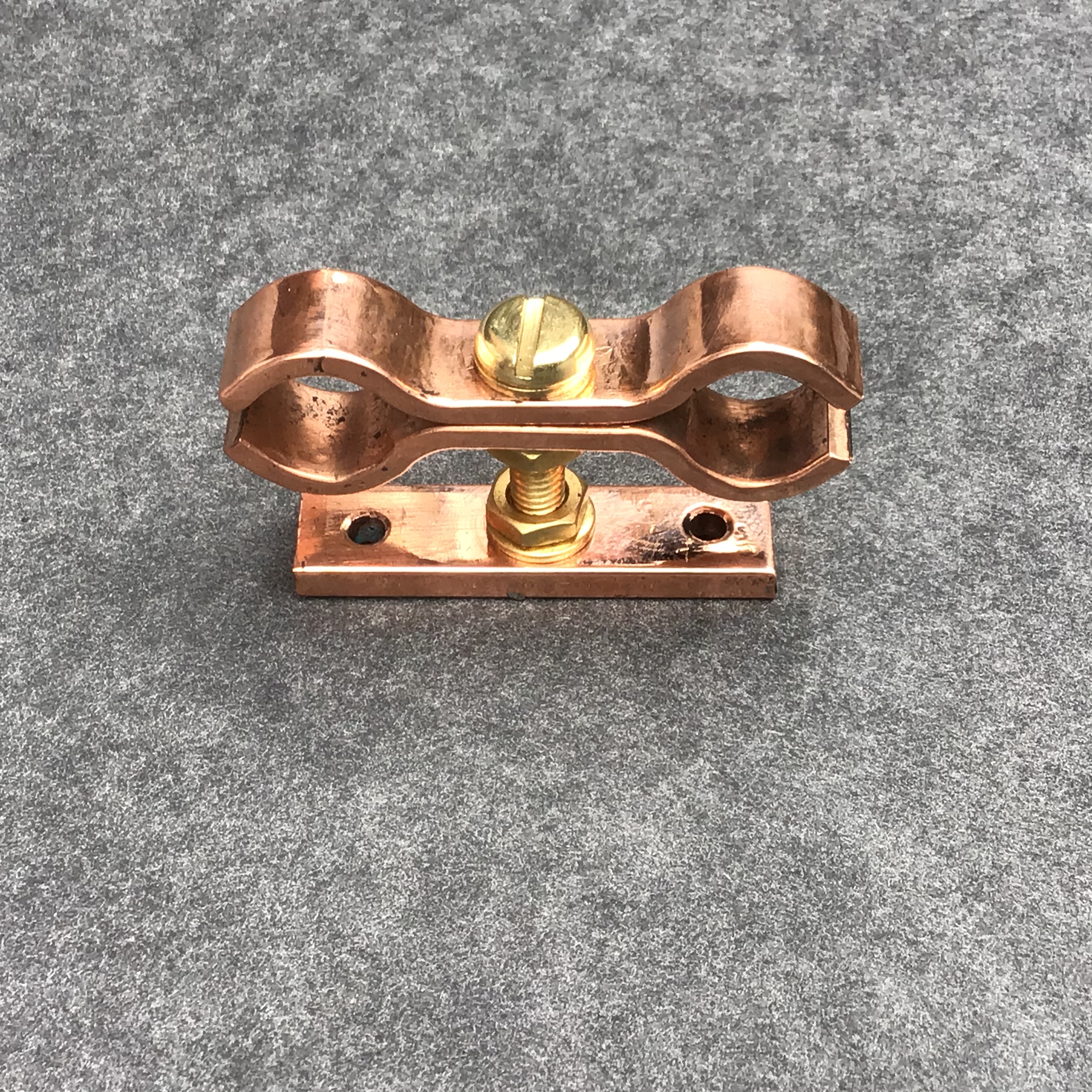

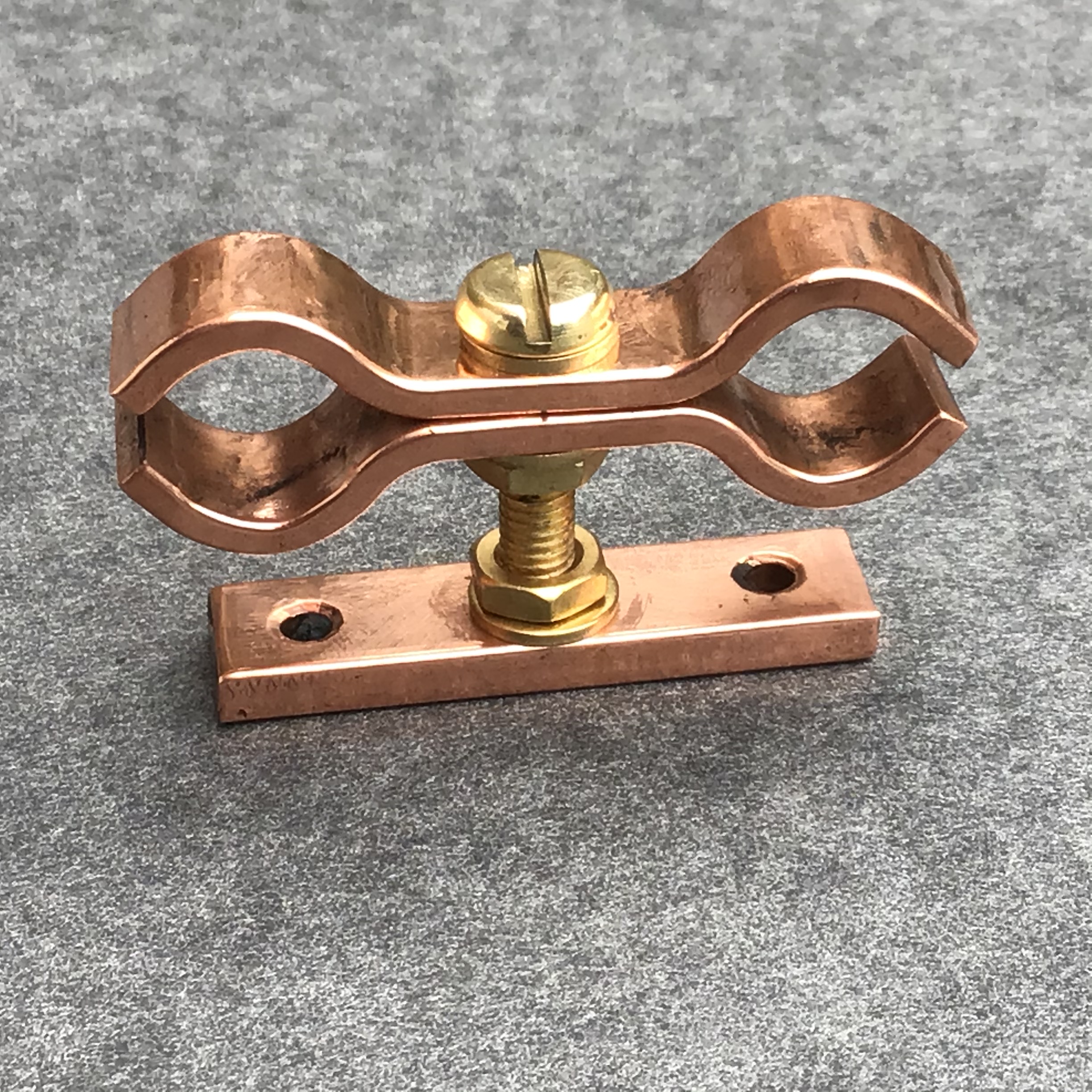

Copper Wall Mount Pipe Clamp Bracket 15mm Diameter Ports
Copper wall mount pipe clamp bracket 15mm diameter ports. Manufactured by BPC Engineering Warwickshire. These beautiful handmade pipe clamping brackets will add that finishing touch to your kitchen living room or bathroom.
Made from solid copper each one is formed using our old 1907 Taylor & Challen hand press.
Adjustment & Information
This particular clamp will space the two pipes at 25mm (1″) clear space apart when installed. The distance from the wall to the pipes can be governed with the adjustment screw.
Easy To Adjust
You can set the distance you want the pipes to be from the fixing surface.
Excess thread can then be cut away with a hacksaw.

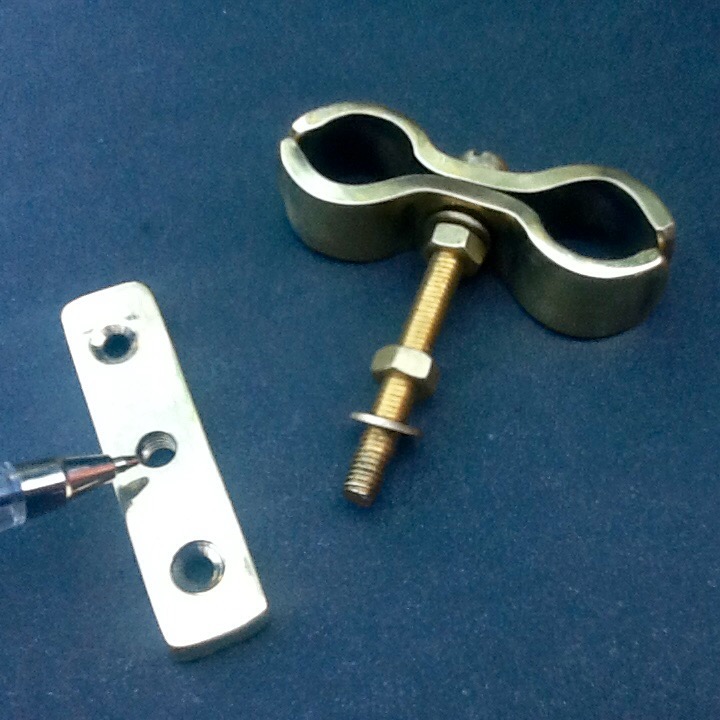

How To Set The Distance
please note that this type of pipe bracket has a thread on the backing plate. This will allow you to screw the central screw all the way through to the desired length. The excess screw thread can then be cut off using a small hacksaw.
5mm diameter thread.

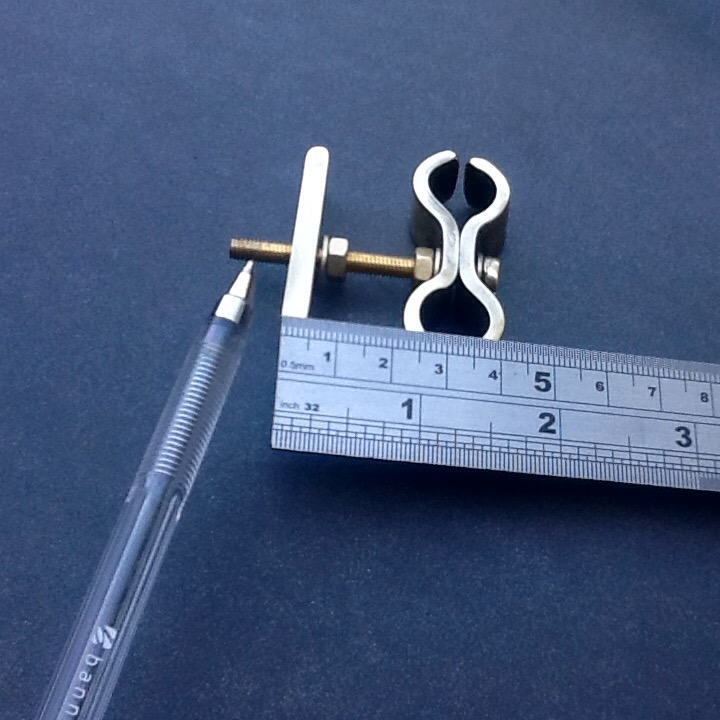

How to adjust your wall mount pipe bracket.
This pipe bracket has our standard 50mm long adjustment screw. This will help you set the pipes distance from the wall.
Pipe Spacing Distance Info
The clamp bracket is 65mm total length and the space between the two ports is 25mm. The pipes will be 42mm centre to centre once installed. If you require a different distance between the pipes please leave a note at the checkout section when you place your order and we will adjust this for you.
Copper Wall Mount Pipe Clamp Bracket Measurements
Copper wall mount pipe clamp bracket Solid Brass
Ideal for 15mm outside diameter pipes.
Banding Width 12mm.
Banding Thickness 3mm.
50mm Long X (M5-5mm) Diameter Brass Adjustment Screw ( You can cut down to size for distancing your pipes from the wall, see above example).
Brass Locking Nuts (5mm)
This pipe clamp will space the pipes at 42mm centre to centre of the pipes when installed.
More copper pipe clamps available from our copper pipe clamps category. If you do not find what you’re looking for please contact us as we may be able to help you find the item. All items are sent free postage & packaging UK.
You may also like thiscopper pipe bracket with a double threaded dowel fixing screw, very simple to install. This bracket will also space the pipes at 42mm centre to centre of the pipes when installed.
Copper Bracket for 15mm Diameter Water Pipes.
Payments & Order Information
When making a purchase from this website simply select the item you want, check the quantity then click the add to cart button. Proceed to the checkout where you will be given several options on how to pay .
Payment: We accept Credit/Debit cards/Direct bank transfer or Paypal. We regret that cheques can only be accepted from approved accounts. Please make sure the delivery address is correct to enable us to process your order smoothly. A receipt of payment will be sent with your goods.
Worldwide Postage
People outside of the UK please contact us for shipping details to your country before you place your order.
Refunds & Returns
If you are not entirely satisfied with your purchase simply send the product/products back and I will issue you a full refund. (buyer pays return postage costs).
BPC Engineering
Manufacturers of non-ferrous metal brackets & pipe support clamps
Although we specialise in manufacturing stainless steel aluminium and copper pipe clamps. BPC Engineering offer a subcontract presswork service for small batch production. Small parts press work drilling tapping and assembly. We can work with client press tooling or we can design and build tooling to your specifications to produce the components you require. We have a upto date workshop fully equipped with tooling and 8 – 10 tonne pressure presses. You can view our products in the BPC SHOP.
