48mm Diameter Supporting Pipe Clamping Bracket Stainless Steel

£30.00

Stainless Steel Clamp

For Installing 48mm OD (Outside Diameter) Pipes

Fast and efficient way to install pipes and tubes close to any surface

Totally Rust Proof







£30.00 Each FREE POST UK



SKU: 48mm-diameter-supporting-pipe-clamping-bracket-stainless-steel Category:

Description

48mm Diameter Supporting Pipe Clamping Bracket Stainless Steel

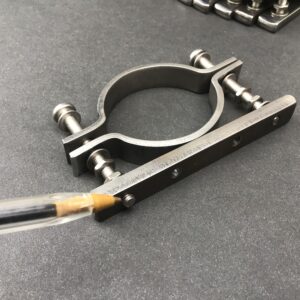

48mm diameter supporting pipe clamping bracket with threaded backing plate. The bracket has two height adjustment screws for fine distance setting. This clamp is totally rust proof it can also withstand extreme heat.

48mm Diameter Supporting Pipe Clamping Bracket Stainless Steel

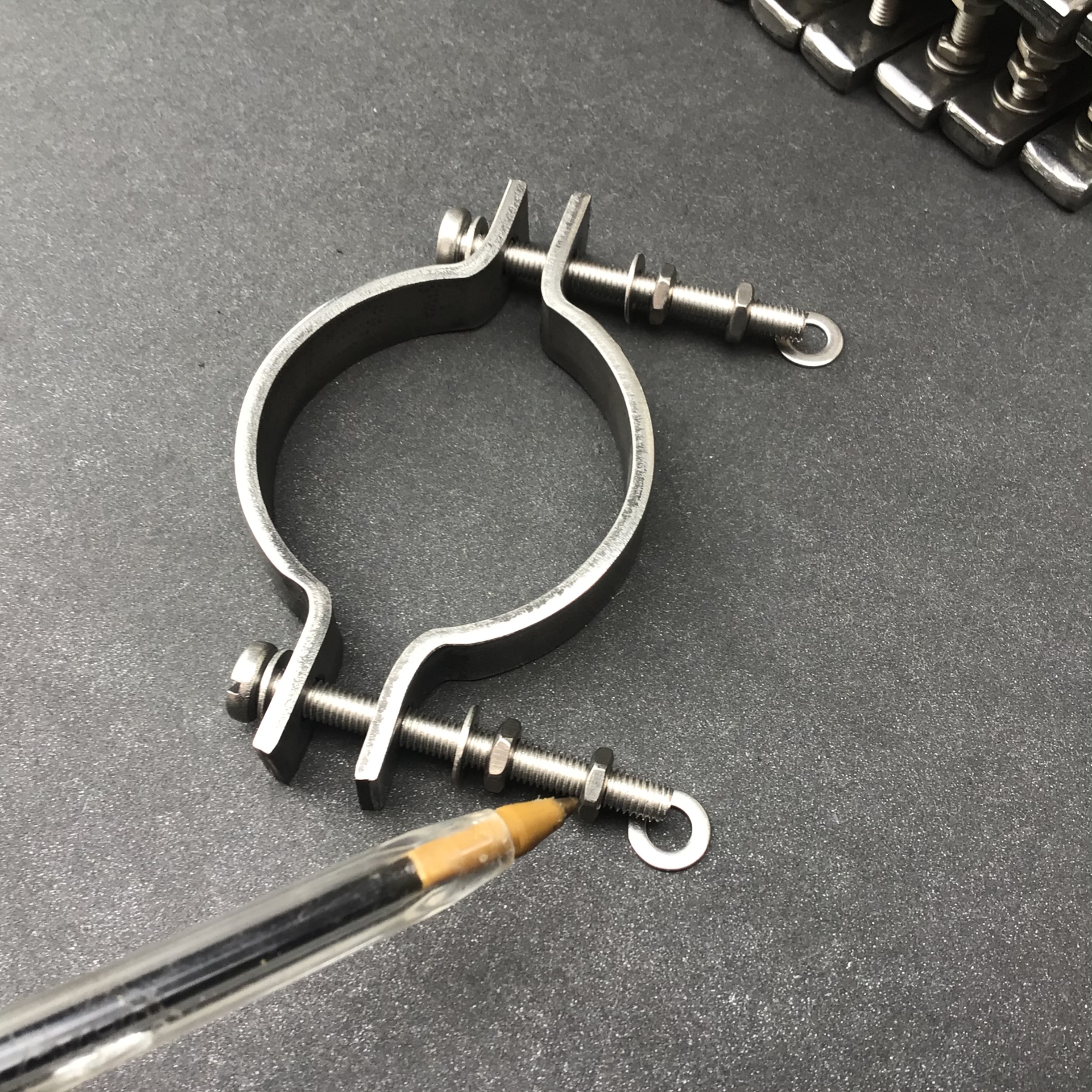

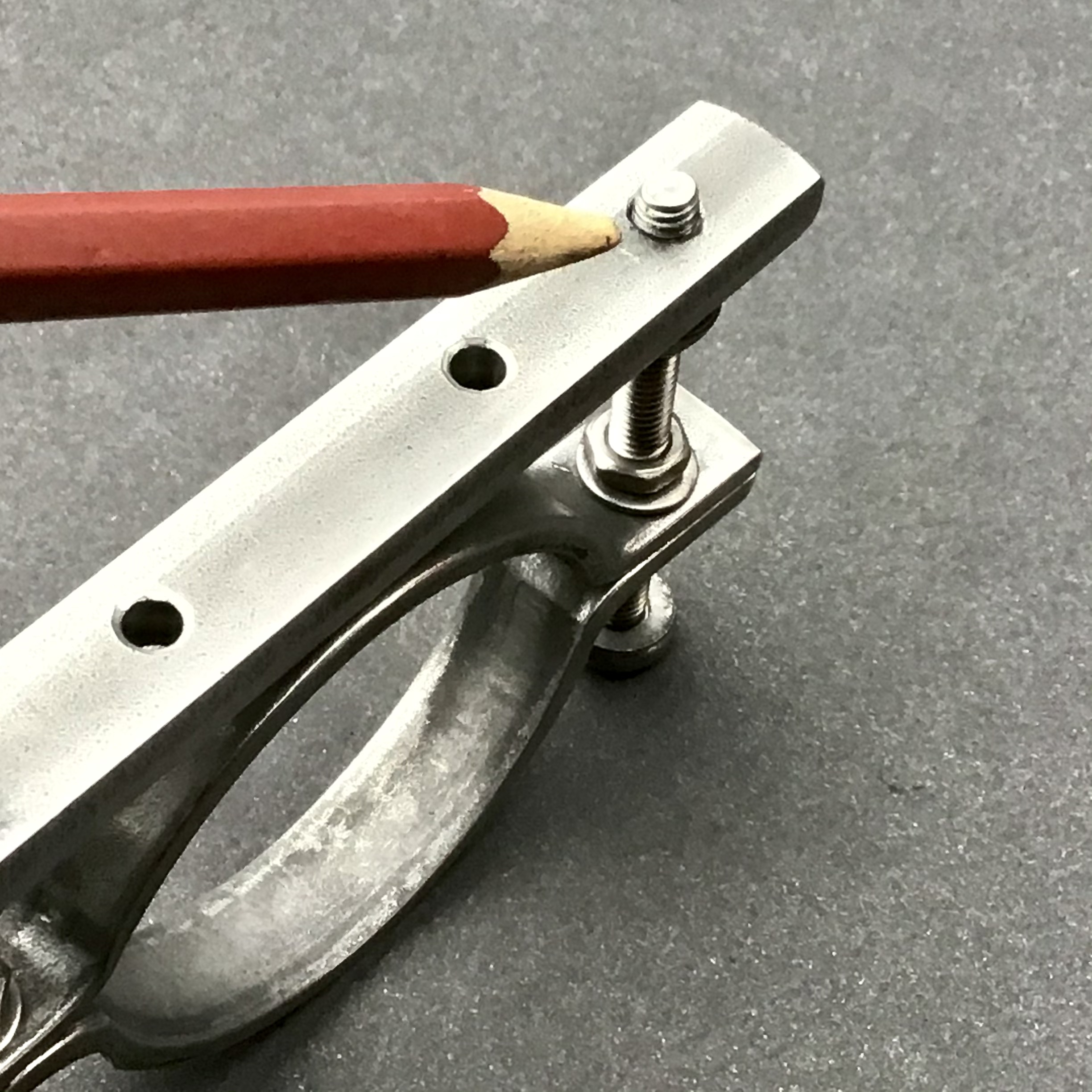

Adjustment screws for fine height adjustment

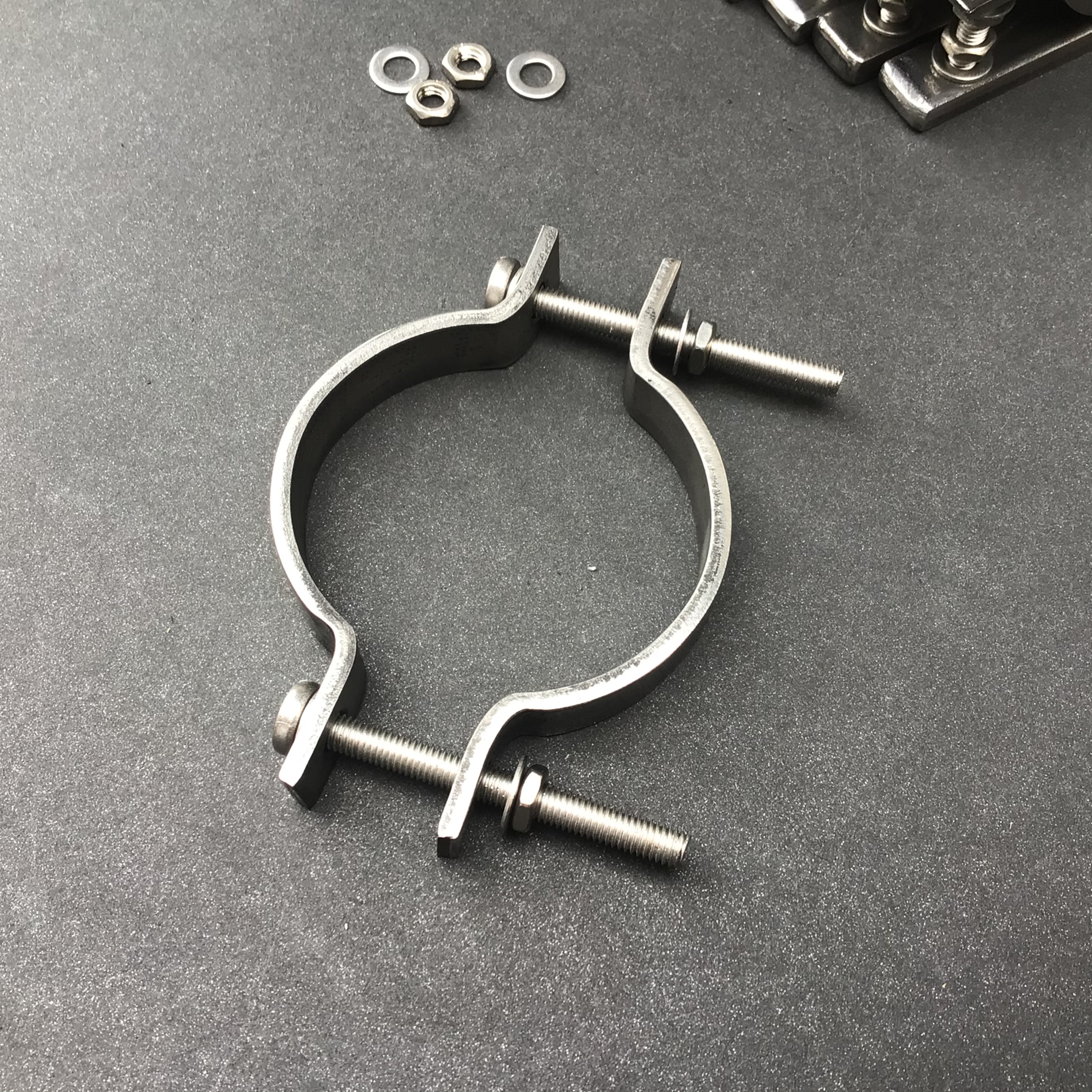

For clamping pipes with an outside diameter of 48mm. This bracket will secure tightly around a 48mm OD (outside diameter) pipe.

Pipe Clamp

Ideal for fixing pipes and tubes as close as 10mm from any fixing surface. Made from solid stainless steel 316L marine grade.

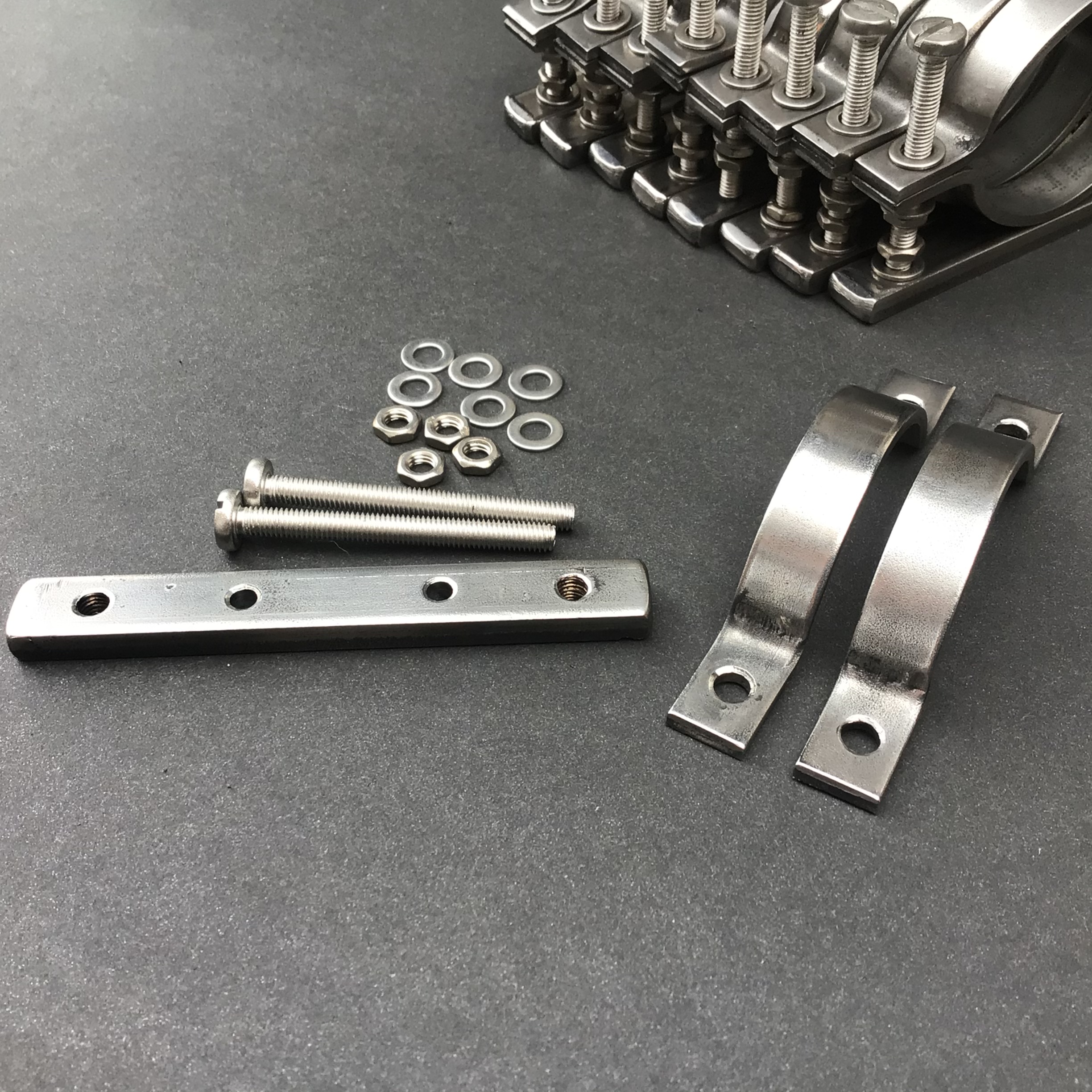

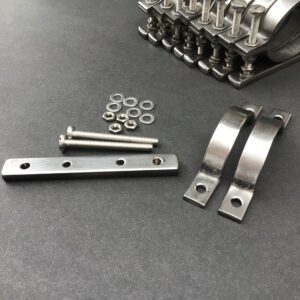

The backing plate will hold the bracket steady. The two fixings can be screwed all the way through the backing plate, this will provide extra support when fixing to machinery or vehicles.

Adjustable height pipe clamps

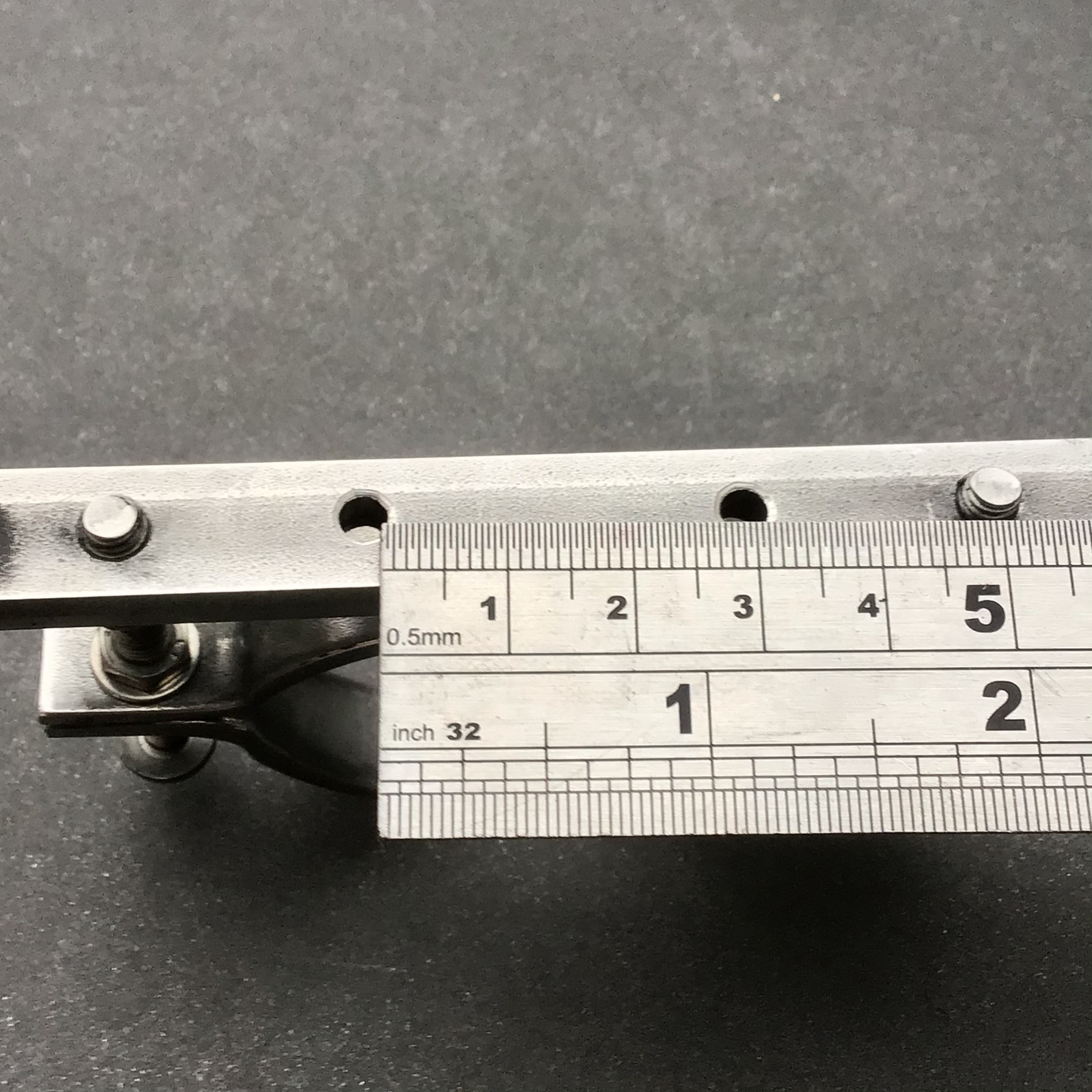

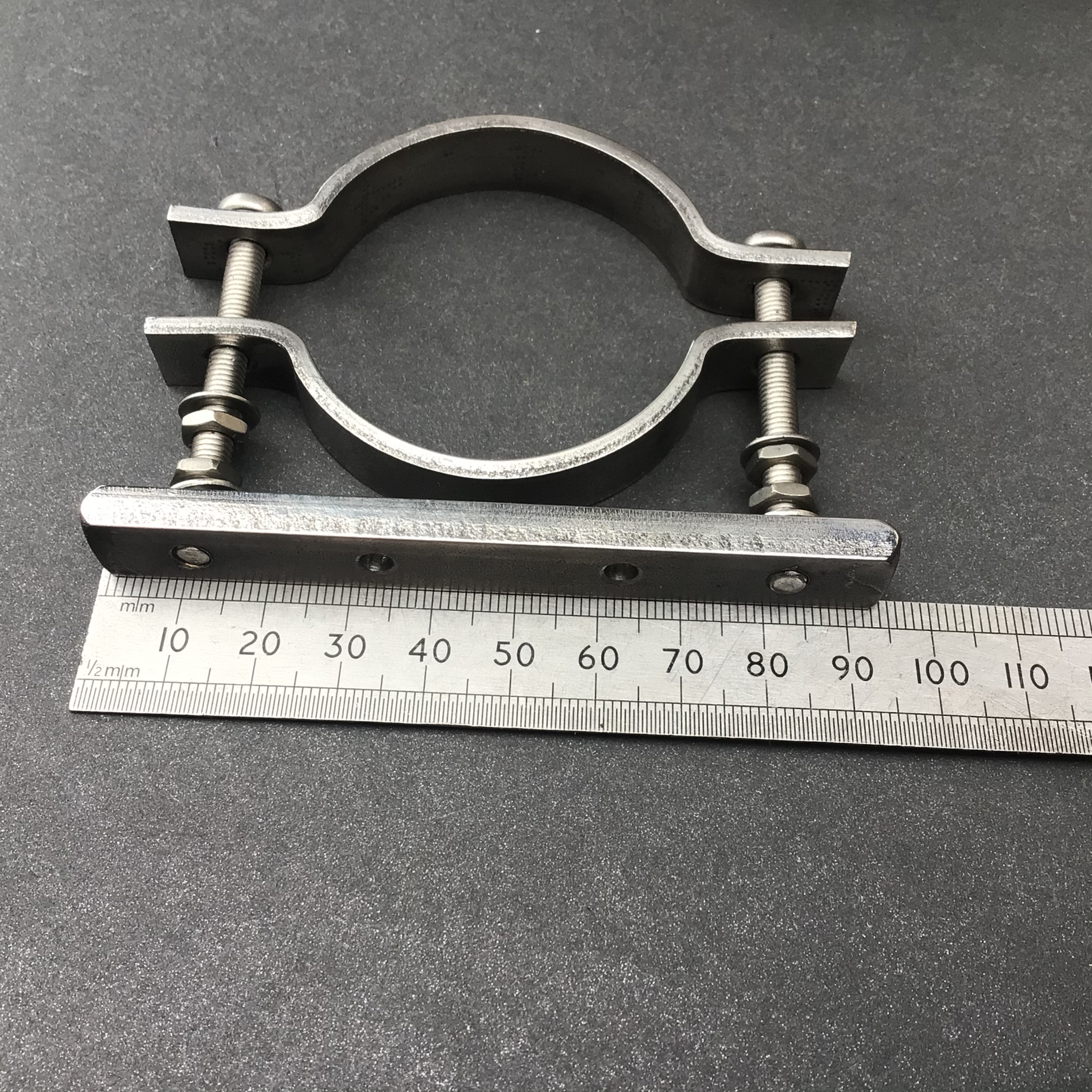

Fixing hole size & Banding Thickness

Our standard fixing holes are 5mm (M5) diameter. This can be adjust on request. The fixing bolts nuts and washer are also stainless steel. This particular clamp is 1/8” thick x 12mm wide banding banding.

48mm Diameter Supporting Pipe Clamping Bracket Stainless Steel

  • Totally Rust Proof/ marine grade 316L
  • For 48mm Outside Diameter Pipes/Tubes
  • 1/8” Thick Banding
  • 12mm Wide Banding
  • M5 (5mm) Diameter Stainless Steel Nuts Bolts Washers
  • Ideal for close surface pipe/tube installations (height adjustable)




Bespoke Brackets

We are manufacturers of pipe fasteners. All of our products are manufactured here in the UK. Quality guaranteed. If you would like a special type of pipe installation bracket please contact us.

Opening times Monday to Friday 8.30am – 5pm

All order’s dispatched within three working days. Customers in a hurry to get the order will need to pay the special delivery charge.


Cold Pressed Stainless & Non-Welded Product

The use of non-welded pipe clamps are favourable due to their reliability and strength. Welded components can malfunction under certain conditions. NO welding is involved in the manufacturing of any of our products.
The stainless steel pipe clamps we manufacture have been cold pressed, this gives the advantage over hot pressed components, as the metal does not lose its strength when cold pressed. These clamps are extremely strong and with the added bonus of being 316L stainless steel (corrosion resistant) makes these pipe clamps the perfect choice for your installation.

Payments & Order Information

When making a purchase from this website simply select the item you want, check the quantity then click the add to cart button. Proceed to the checkout where you will be given several options on how to pay .

Guide Dispatch Time
Please allow five working days before dispatch.

Payment: We accept Credit/Debit cards/Direct bank transfer or Paypal. We regret that cheques can only be accepted from approved accounts. Please make sure the delivery address is correct to enable us to process your order smoothly. A receipt of payment will be sent with your goods.

Worldwide Postage

People outside of the UK please contact us for shipping details to your country before you place your order.

Refunds & Returns

If you are not entirely satisfied with your purchase simply send the product/products back and I will issue you a full refund. (buyer pays return postage costs).


Pipe-Clamp Manufacturing BPC Engineering UK

Manufacturers of non-ferrous metal brackets & pipe support clamps

Although we specialize in manufacturing stainless steel aluminium and copper pipe clamps, BPC Engineering offer a subcontract presswork service for small batch production. Small parts press work drilling tapping and assembly. We can work with client press tooling or we can design and build tooling to your specifications to produce the components you require. We have a up to date workshop fully equipped with tooling and 8 – 10 tonne pressure presses. You can view our products in the BPC SHOP.

You can view our full range of pipe clamps and pipe brackets index
