Description

30mm-30mm Pole Bracket For Marine Solar Panel Installation Stainless Steel

30mm-30mm pole bracket with stainless steel fixings. This bracket will secure tightly to 30mm and 30mm diameter poles. The bracket will allow you to install the two poles securely side by side to each other.

Pole Distancing Once Installed

The distance between the poles once installed in this bracket will be approximately 3″ (75mm) centre to centre of of the poles. This will give you a 2″ (50mm) clear space between the two poles.

Bespoke Brackets

We can make these brackets to your specifications. We can space the poles at a required distance set by yourself. Please contact Heath Verrall at BPC Engineering Warwickshire 01789750000 to chat about the type of brackets you have in mind for your installation.

Bracket Installation Info

The solar panel support poles can be attached to the stern rail(s) using our brackets. No drilling or machining is required, simply tighten the two nuts and bolts and that’s it.

These brackets can also be used to support marine wind turbine poles

High Quality Finish

All of our combination clamping brackets are polished finished with stainless steel Fixings. They are made from 3mm thick 316L marine grade stainless steel.

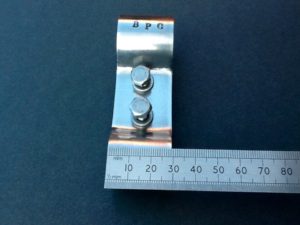

Measurements 30mm-30mm Pole Bracket For Marine Solar Panel Installation

Polished 316 Stainless Steel

TOTALLY RUST PROOF

This bracket will secure 30mm and 30mm diameter poles together

Pole distance from each other once installed 75mm (3″) centre to centre.

Clear space between poles will be 50mm (2″)

Banding Width 30mm

Band Thickness 3mm

6mm (M6) nuts & bolts

View more of our marine solar panel pole clamping brackets

---

Cold Pressed & Non-Welded Product

The use of non-welded pipe clamps are favourable due to their reliability and strength. Welded components can malfunction under certain conditions. NO welding is involved in the manufacturing of any of our products.

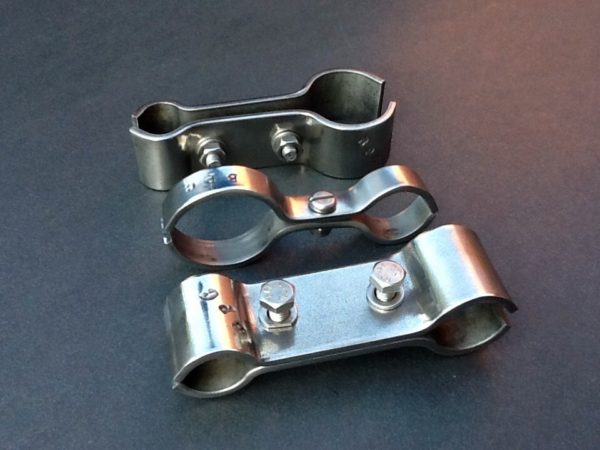

The double size combination clamps we manufacture have been cold pressed. This gives the advantage over hot pressed components, as the metal does not lose its strength when cold pressed. These clamps are extremely strong and with the added bonus of being 316L stainless steel (corrosion resistant) makes these pipe clamps the perfect choice for your installation.

Payments & Order Information

When making a purchase from this website simply select the item you want, check the quantity then click the add to cart button. Proceed to the checkout where you will be given several options on how to pay .

Guide Dispatch Time
Please allow three working days before dispatch.

Payment: We accept Credit/Debit cards/Direct bank transfer or Paypal. We regret that cheques can only be accepted from approved accounts. Please make sure the delivery address is correct to enable us to process your order smoothly. A receipt of payment will be sent with your goods.

Worldwide Postage

People outside of the UK please contact us for shipping details to your country before you place your order.

Refunds & Returns

If you are not entirely satisfied with your purchase simply send the product/products back and I will issue you a full refund. (buyer pays return postage costs).

---

Pipe-Clamp Manufacturing BPC Engineering UK

Manufacturers of non-ferrous metal brackets & pipe support clamps

Although we specialise in manufacturing stainless steel aluminium and copper pipe clamps. BPC Engineering offer a subcontract presswork service for small batch production. Small parts press work drilling tapping and assembly. We can work with client press tooling or we can design and build tooling to your specifications to produce the components you require. We have a upto date workshop fully equipped with tooling and 8 – 10 tonne pressure presses. You can view our products in the BPC SHOP.

You can view our full range of pipe clamps and pipe brackets index
