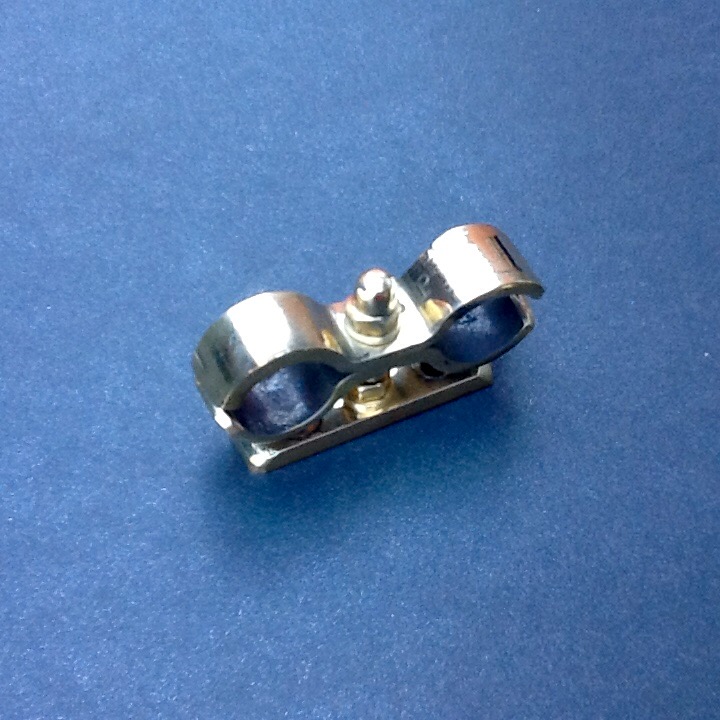

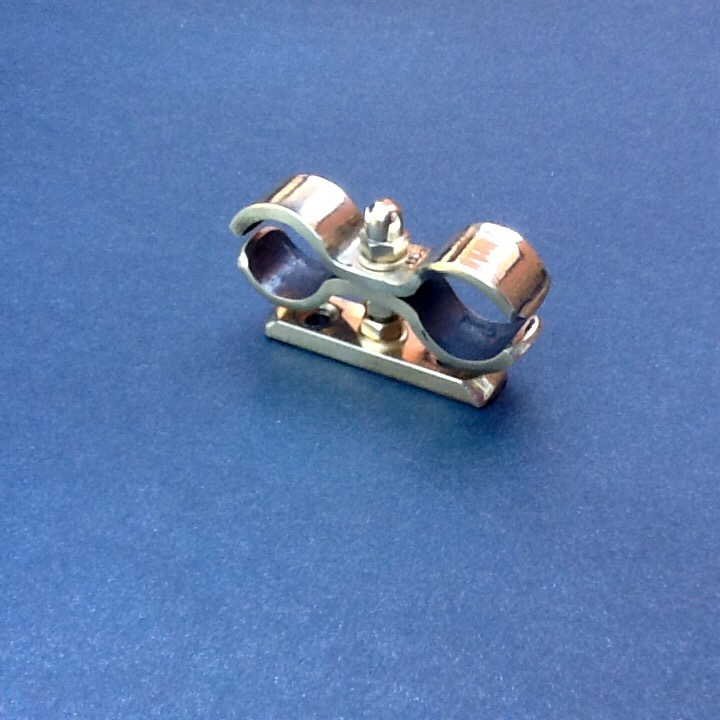

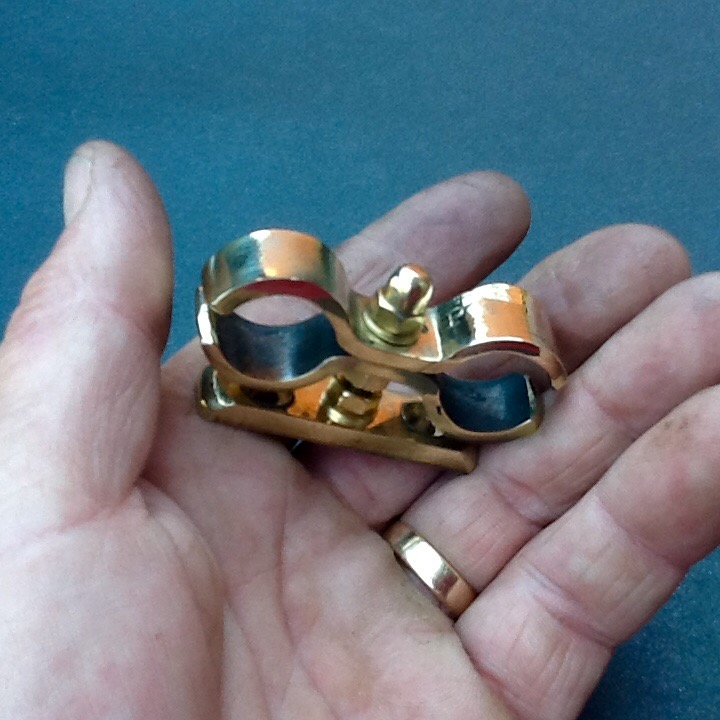

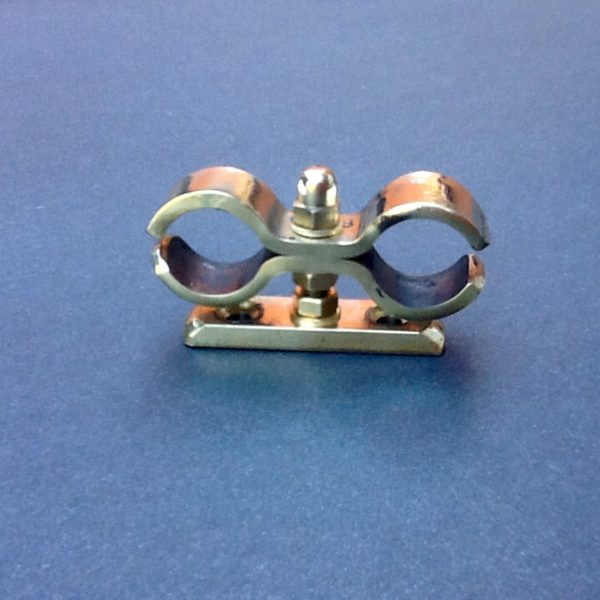

18mm Water Pipe Bracket Wall Mount Double Pipe Clamp Bracket
18mm water pipe bracket, brass wall mount double pipe clamp bracket. Manufactured by BPC Engineering Warwickshire. These beautiful handmade munsen ring type pipe clamping brackets will add that finishing touch to your kitchen living room or bathroom.
Made from solid brass each one is formed using our old 1907 Taylor & Challen hand press, no two are the same, each one is slightly different from the other giving that unique age old look about them.
How These Clamps Are Made
Because of the purity of the brass, it has to be heated to a cherry red colour (extremely hot) before forming can take place.
Once this process is completed it can then go on to be formed and allowed to cool. The clamp is then drilled, tapped and shaped by filing. Finally the clamp can go on to be polished and assembled.
For 18mm Diameter Pipes
Adjustment & Information
This particular clamp will space the two pipes at 38mm centre to centre of the pipes when installed. The distance from the wall to the pipes can be governed with the adjustment screw.

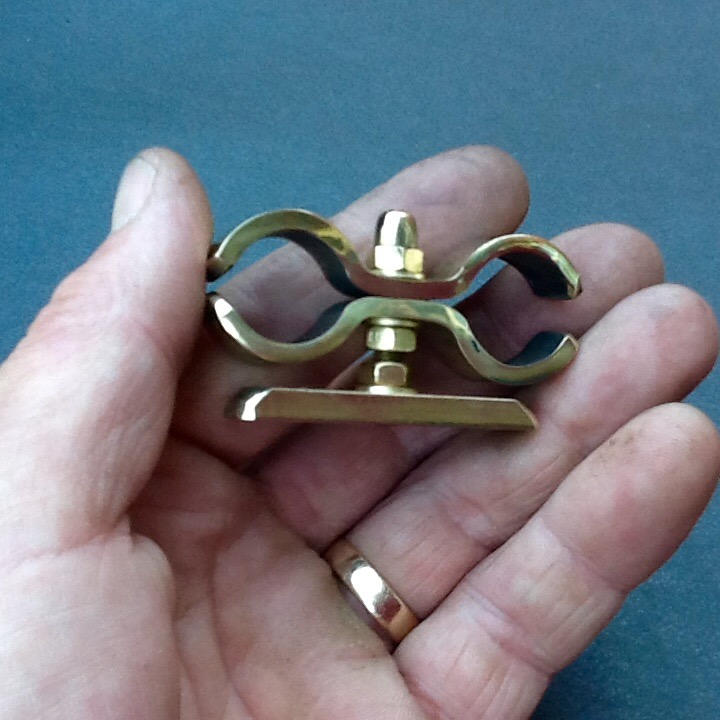

How to adjust your wall mount pipe bracket.
The bracket can be adjusted using the 30mm long adjustment screw, this will allow you to set the pipes at a distance of 30mm maximum from the wall, you can decrease the distance ( move the pipes closer to the wall ) by using a shorter screw. If you would like the pipes set further away from the wall simply add a longer screw.
If you have an idea on how far you want the pipe set from the wall please add a note when you purchase at the checkout and we will provide the right length adjustment screw with the bracket.
Measurements
18mm Water Pipe Bracket Wall Mount Double Pipe Clamp Bracket
Port Diameter 18mm
Banding Width 12mm.
Banding Thickness 3mm.
30mm Long X (M5-5mm) Diameter Adjustment Screw
Brass Locking Nuts (5mm)
This pipe clamp will space the two pipes at 38mm centre to centre of the pipes when installed.
18mm Brass Pipe Bracket BPC Engineering
More decorative pipe clamping brackets are available from our brass pipe clamps category. If you do not find what your looking for please contact us as we may be able to help you find the item. All items are sent free postage & packaging UK.

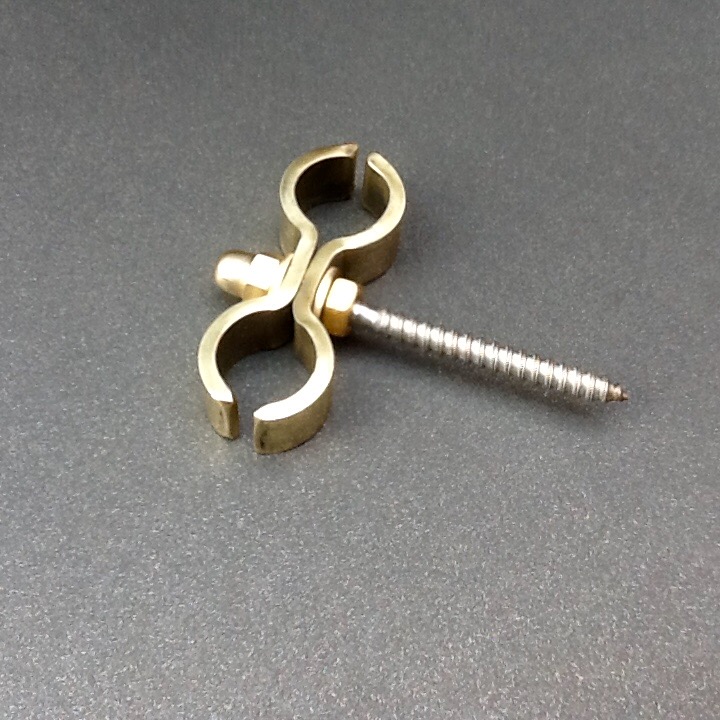

You may also like this 18mm pipe bracket with double threaded dowel fixing screw.
18mm Brass Pipe Bracket
Payments & Order Information
When making a purchase from this website simply select the item you want, check the quantity then click the add to cart button, then proceed to the checkout where you will be given several options on how to pay .
Payment: We accept Credit/Debit cards/Direct bank transfer or Paypal. We regret that cheques can only be accepted from approved accounts. Please make sure the delivery address is correct to enable us to process your order smoothly. A receipt of payment will be sent with your goods.
Worldwide Postage
People outside of the UK please contact us for shipping details to your country before you place your order.
Refunds & Returns
If you are not entirely satisfied with your purchase simply send the product/products back and I will issue you a full refund. (buyer pays return postage costs).
BPC Engineering
Manufacturers of non-ferrous metal brackets & pipe support clamps
Although we specialise in pipe clamp manufacturing, BPC Engineering offer a subcontract presswork service for small batch production. Small parts press work drilling tapping and assembly. We can work with client press tooling or we can design and build tooling to your specifications to produce the components you require. We have a upto date workshop fully equipped with tooling and 8 – 10 tonne pressure presses. You can view our products in the BPC SHOP.
